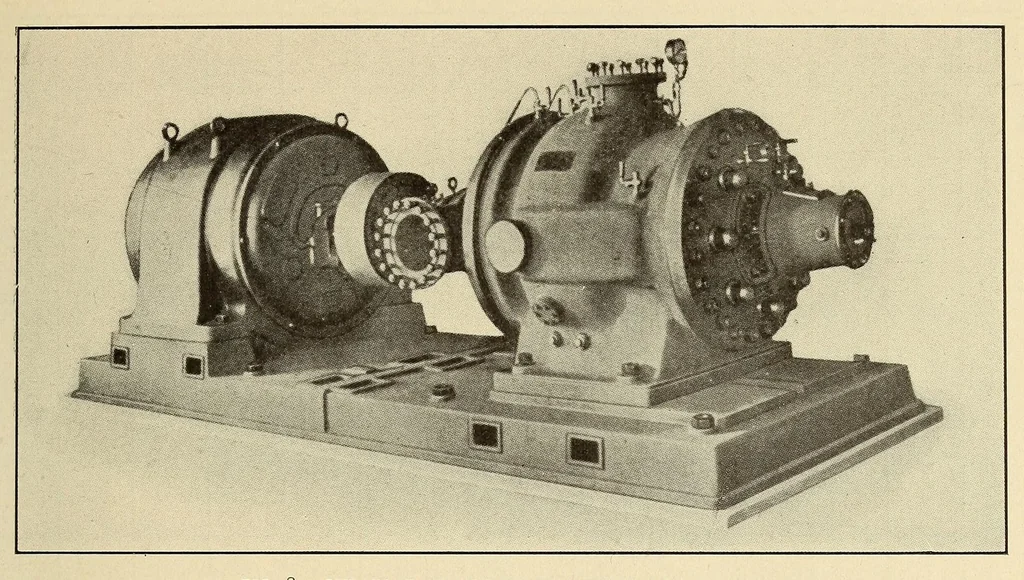

TURBINE PUMPS 307 … FIG. 8. SIX-STAGE HIGH-PRESSURE CENTRIFUGAL PUMP who employ a very effective hydraulic exists in the end chamber behind the balancing arrangement, which con- last diaphragm. The characteristic sists in mounting the impellers in curves in Fig. 13 represent the re- pairs back to back, and as a result…
