Catalogue "C" of pumps and hydraulic machinery for every service .. (1903)
Goulds manufacturing co. [from old catalog] · [Seneca Falls, N.Y.?] · leaf 105

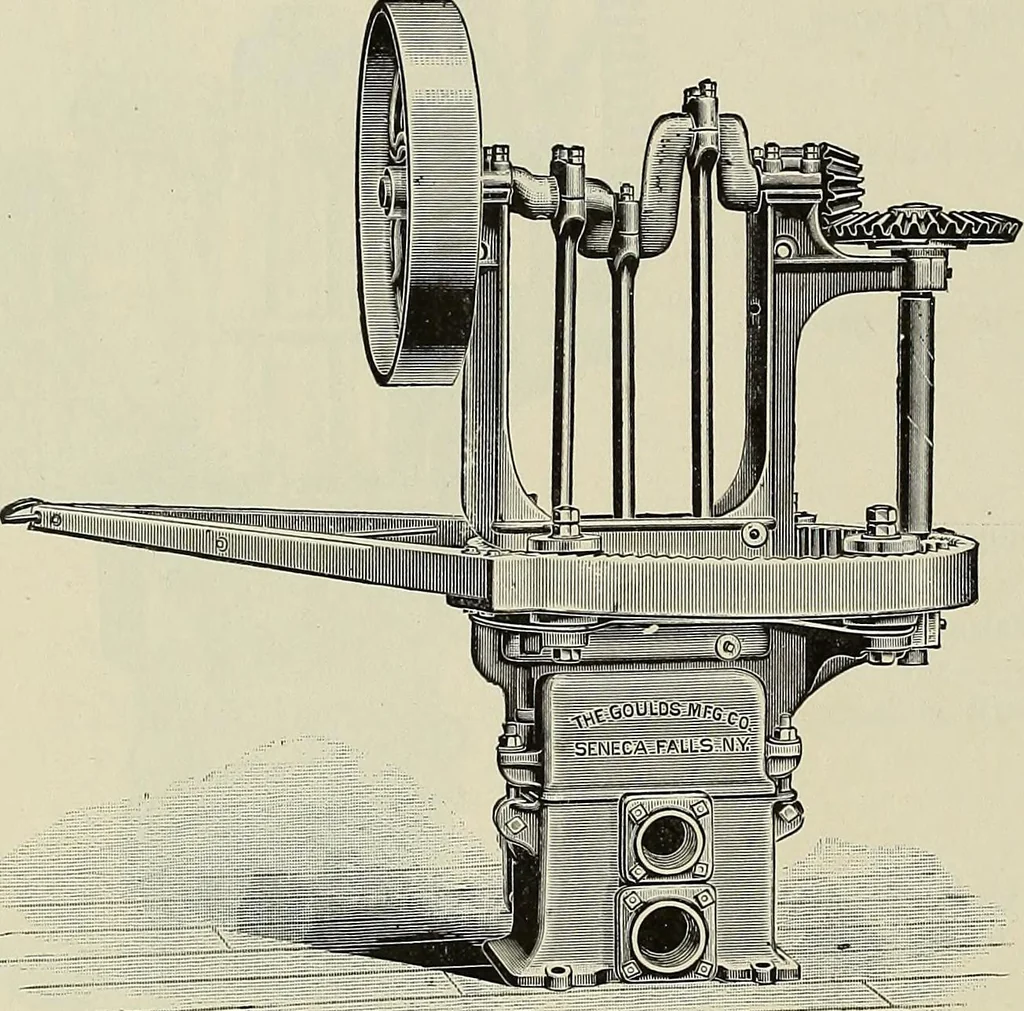

rig 1388 Fig. 13 Sizes, Capacities, Etc. Plungers CapacityOne Rev. ofCrank Shaft Capacity per Hour at 40Revolutions per Minute Suction Discharge Geared TightPulleys Cipher Dia. Stroke 4 in. 5 6 8 in.10 12 1.3 gals. 2.5 ■ 4.4 3,120 gals.6,000 10,560 ZYi in. pipe 4 S 3 in. pipe 45 6 to I 1 20 X 3… … Fig. 1121 is a modification of our Fig.loio (page 98) Triplex Pump with horsepower gear surrounding and direct connect-ed to pump crank shaft. The advantagesof the Triplex type Pump was never moreclearly demonstrated than when operated byhorse power. The operation of this Pumpis uniform and smooth,…
Pumping machinery
