Catalogue "C" of pumps and hydraulic machinery for every service .. (1903)
Goulds manufacturing co. [from old catalog] · [Seneca Falls, N.Y.?] · leaf 148

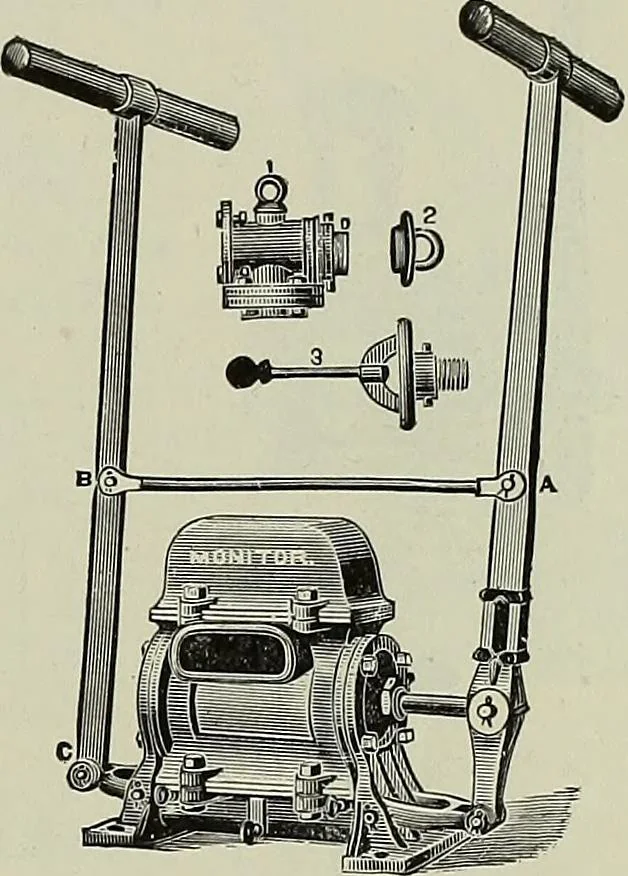

ie the upper valves,while by unscrewing the four nuts that secure the bed plate to the cylinder,the cylinder can be raised, and the lower valves are exposed. The position ofthe Pump or the pipes have, therefore, in no way to be disturbed should thevalves become clogged and require examination. We… … Fig. 581 Fig. 581. Suction and Bilge Pump. Size, Price, Etc. No. Diameter Cylinder Strok Capacityper Revolution Suction Cipher Brass-Lined 16 6 in. 5 in- 1.22 gal. 2^/2 in. hose Melt $55-00 Fig. 55 2. Combined Force Pump. Size, Pric e, Etc. No. DiameterCylinder Stroke Capacityper Revolution Suction…
Pumping machinery
