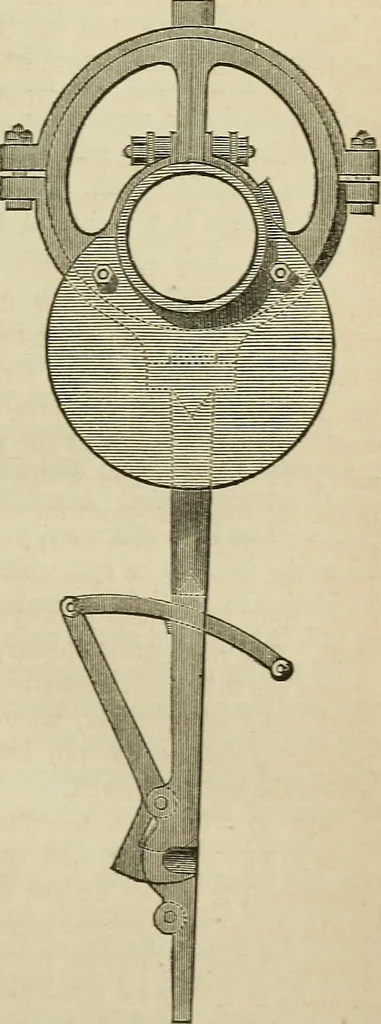

ty of the rod. 630. Q.—TTill you explainin detail the construction ofthe valve gearing, or such,parts of it as are peculiar tothe oscillating engine ? A.—The eccentric rod isattached by a pin. 1 inch indiameter, to an open curvedlink or sector with a tailprojecting upward and pass-ing through an… … 318 penns oscillating paddle engine. The opening in the link, which extends nearly its entire length,is 1T5F inch broad; and into this opening a brass block 2 incheslong is truly fitted, there being a hole through the block g inchdiameter, for the reception of the pin of the valve shaft lever.The…
