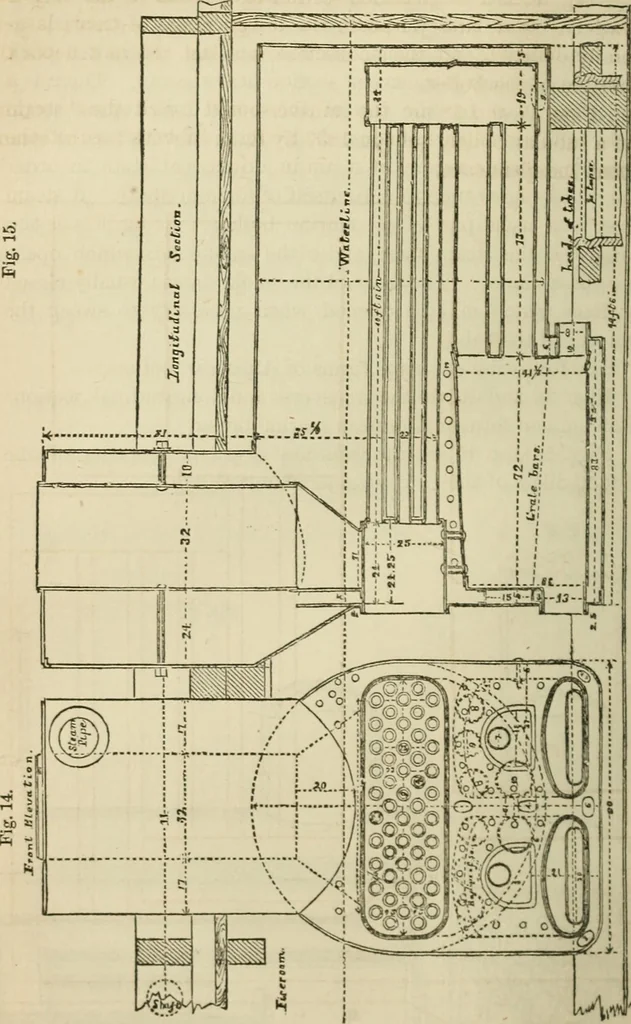

42 AMERICAN BOILERS. … >v^ MARINE BOILERS. 43 Fig. 16 is a longitudinal section of a boiler of the drop fluevariety. For land purposes the lowest range of tubes is gen-erally omitted, and the smoke makes a last return beneath thebottom of the boiler. Figs. 17 and 18 are the transverse and longitudinal sectionsof a…
