A catechism of the steam engine in its various applications to mines, mills, steam navigation, railways, and agriculture. With practical instructions for the manufacture and management of engines of every class (1864)
Bourne, John · New York, D. Appleton & co. · leaf 85

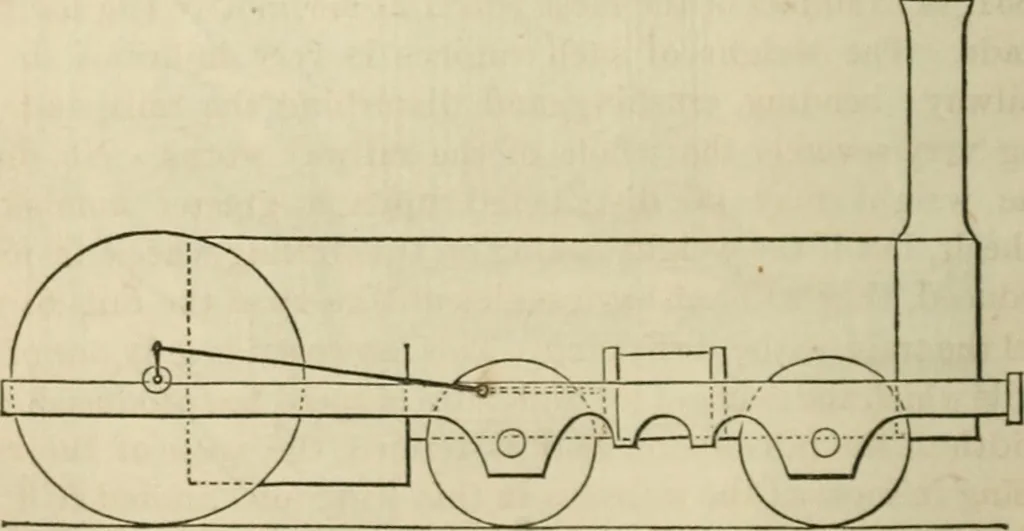

construction. Fig. 30 represents Goochs express engine, adapted Fig. 81. … for the wide gauge of the Great Western Railway; and fig. 31 HEAVY ENGINES INJURIOUS TO THE RAILS. 69 represents Crainptons express engine, adapted for the ordi-nary or narrow gauge railways. The cylinders of Goochs en-gine are each 18 inches diameter, and 24 inches stroke; thedriving wheels are 8…
Steam engineering · Steam-engines
