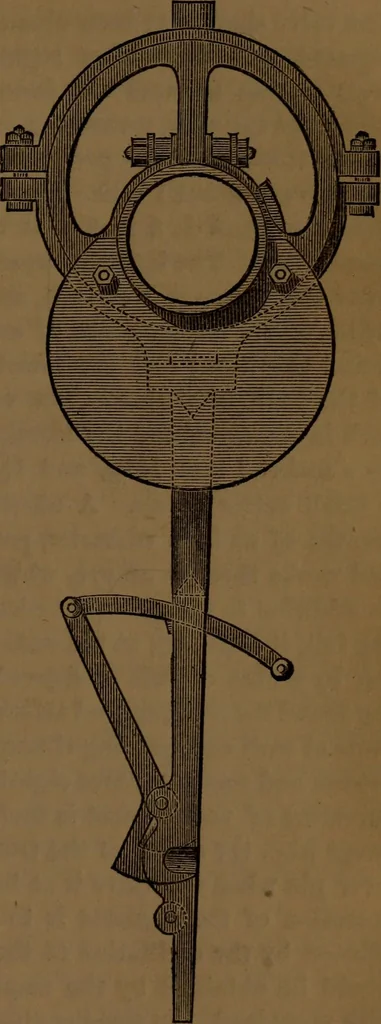

l, it acts in opposition tothe gravity of the rod. 630. §.—Will you explainin detail the construction ofthe valve gearing, or suchparts of it as are peculiar tothe oscillating engine ? A.—The eccentric rod isattached by a pin, 1 inch indiameter, to an open curvedlink or sector with a tailprojecting… … Eccentric and Rod. Messrs. Penn. 318 penns oscillating paddle engine. The opening in the link, which extends nearly its entire length,is lj%- inch broad; and into this opening a brass block 2 incheslong is truly fitted, there being a hole through the block f inchdiameter, for the reception of the…
