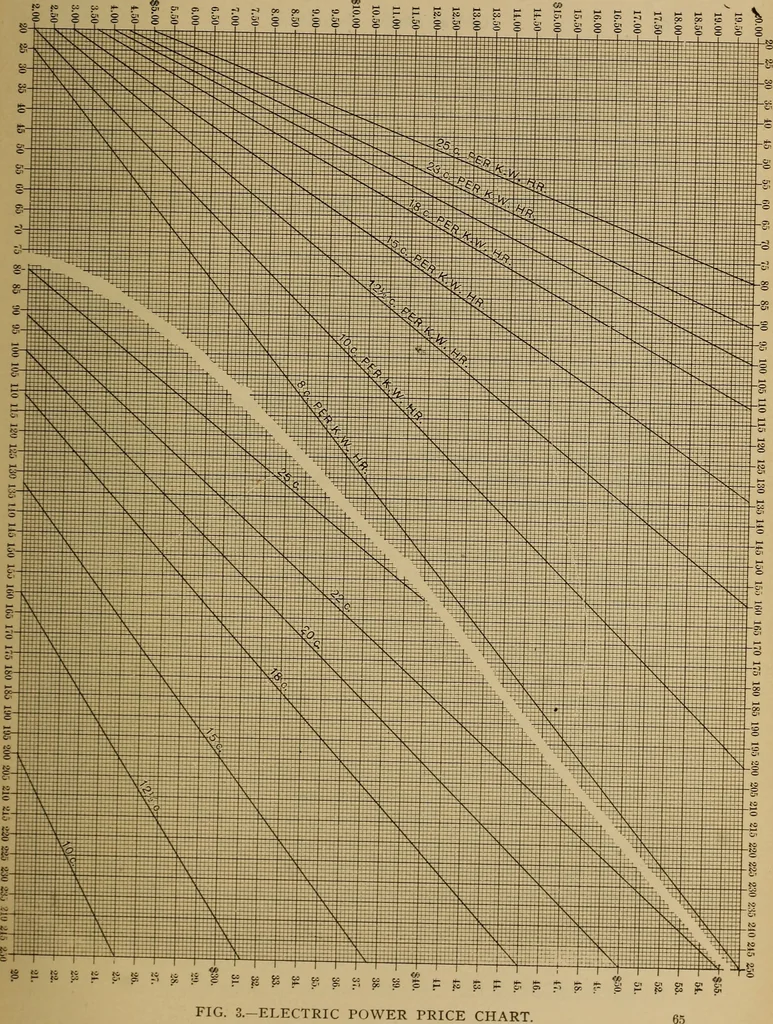

ned to a diagram likeFig. 2. If you trace these connections, he said, you will find thatwith no lamps on, current will flow from the + li^^ wire throughthe series field coils between A and B, then through the shuntcoil and armature to C, and out to the negative line wire. Al-though it is almost… … o ►- jc FIG. 3.-ELECTRIC POWER PRICE CHART 66 Central Station Experiences. Why wasnt it fixed that way? Because it is intended to measure only the work done beyondit. As it stands it does this. If you change the shunt field con-nection over to A, the meter will register the work done in its…
