Characteristics of a three phase and single phase induction motor (1912)
Belt, Jefferson Hall, Murray, Norris Fay · leaf 20

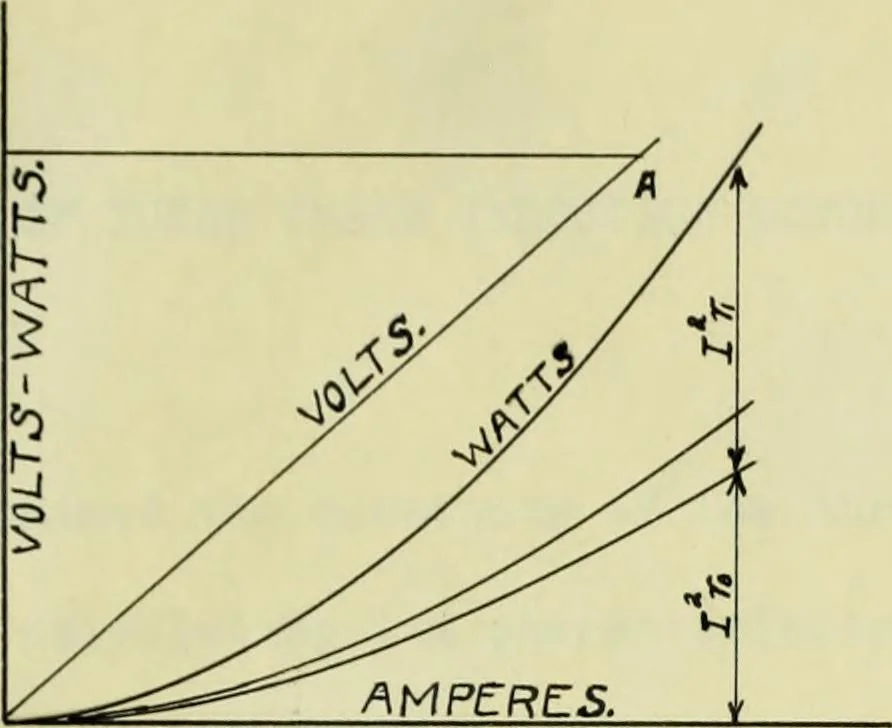

and secondary copper losses. … Fig.c . Referring to fig.2 plot watts and volts against amperes. Calculateand plot the primary I2r curve. Vertical distances between this and the wattcurve represent secondary I2r losses. These may then be plotted. The curve be-tween volts and airperes is almost a straight line and if produced,…
Electric motors, Induction · Electric motors, Polyphase · Theses
