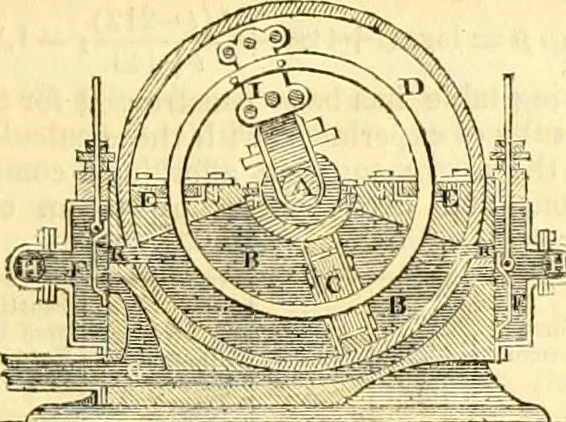

Fig. 2. A Longitnilinal Sectiontalten tliroiigh the centre of llie Engine. Fig. 3. Transverse Ssctiontakeo tlirougU tlie ceutro of the Ens;ine. … ^- ,!-.i^»1 The letters of reference are the same in both sections.A—Is thefi.Ned slialt in tlie centre of the engine, on which llie connecting arms supporting tlie piston rod, and carrying a cro.ss liead oi piu for tlie connecting rod to oscillate freely upon.B—Sleani chamber in which the piston…
