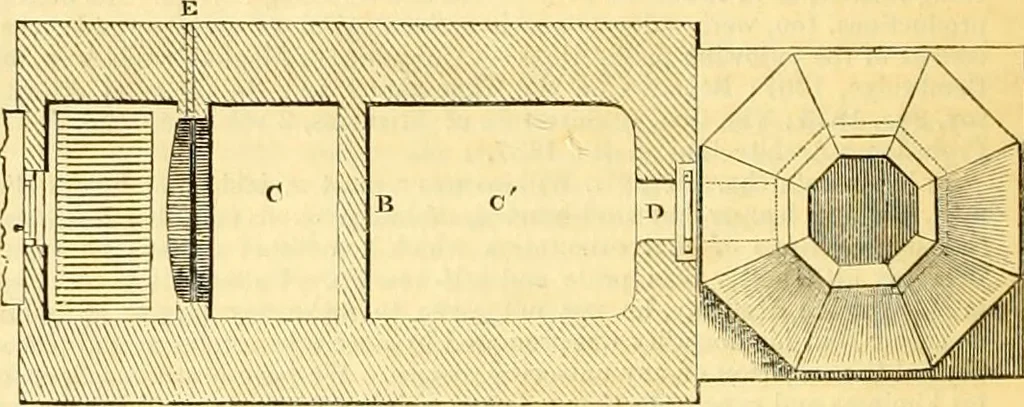

int in adUtion to this, there is also another bridge1!, at about half the length of the boiler, which divides the flame bed intotwo chambers C C. The damper jilate D, is hung by side rods in tlie shortpassage leading to the chimney, which is the only part that can be pro-perly called a flue. The… … top, and intended to be large enough for two such boilers, which it evi-dently is. The following cut (fig. 3) is a cross section of the boiler taken * That is, without any return flue, but with the flame and smoke to passfrom the fire place directly under the bottom of the boiler to the vent…
