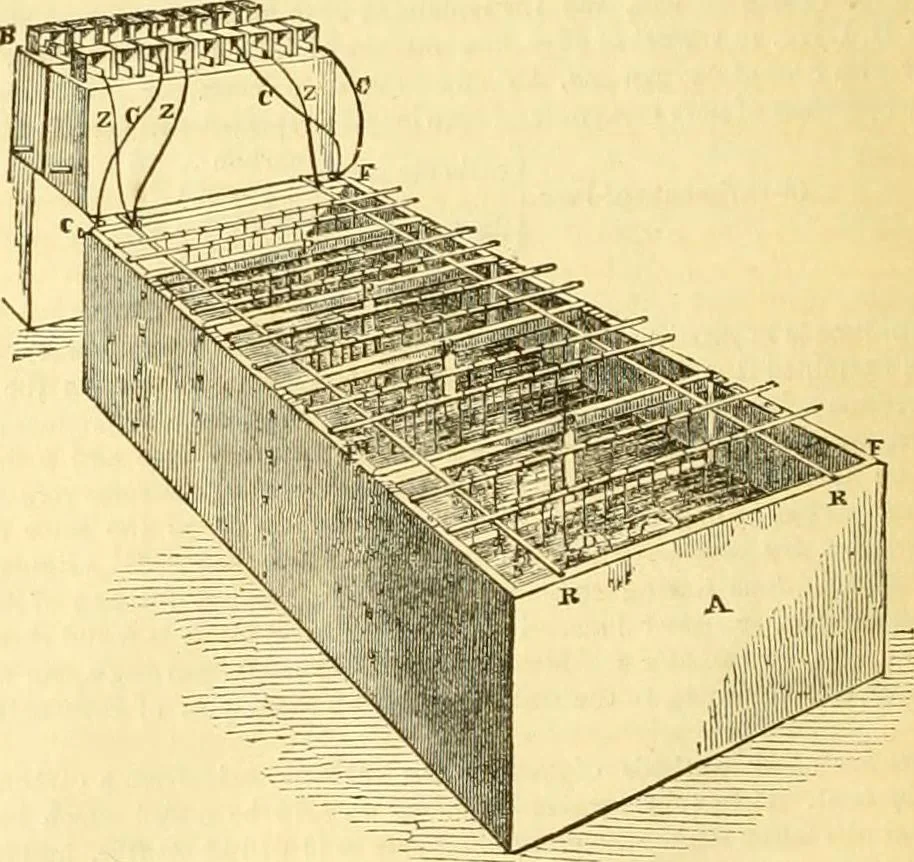

ame metal as that held in the solution are then placed thereinupon either side of the articles; and connected with the positive or copperterminal of the same battery, by means of aslip of copper, fixedupon the ejgeof the vessel. A, Battery Trough. B, Copper Plates. C, Zinc Plates. D, Connecting… … A, Vat or vessel coitaining tlie solution. B, Battery with Zlne pole Z, connected withroiis KRi and Copper pole C, eonnected with the metallic sheets PP, in the solution; hymeans of the Copper slip F; DD, are articles suspended in the solution by wues from therods RR ; S, the solution. The…
