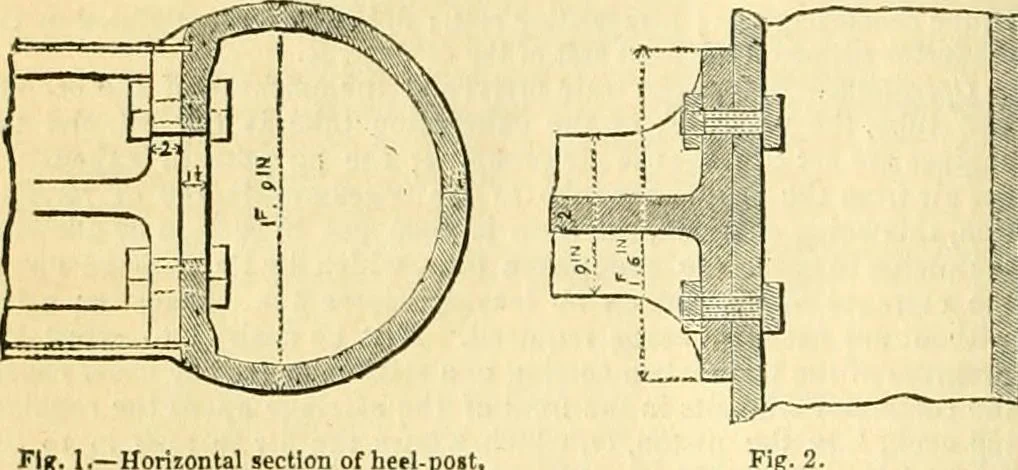

ock, at Dundee, which viere constructed in1S34, also from the designs and under the direction of the author.The entrance is 55 feet wide in the clear, and the centre of the beel-post being 1 foot inwards from the face of the wall, the distance be-tween the centres is consequently 57 feet. The gates… … Fig. 1.—Horizontal section of heel-post, and plan of the end of a bar. Vertical section of heel-post ana oar, forming a segment of a circle, somewhat larger than a semicircle,which admits of their being accurately turned in a lathe; they areli inch thick, at the thinnest part when finished ; but…
