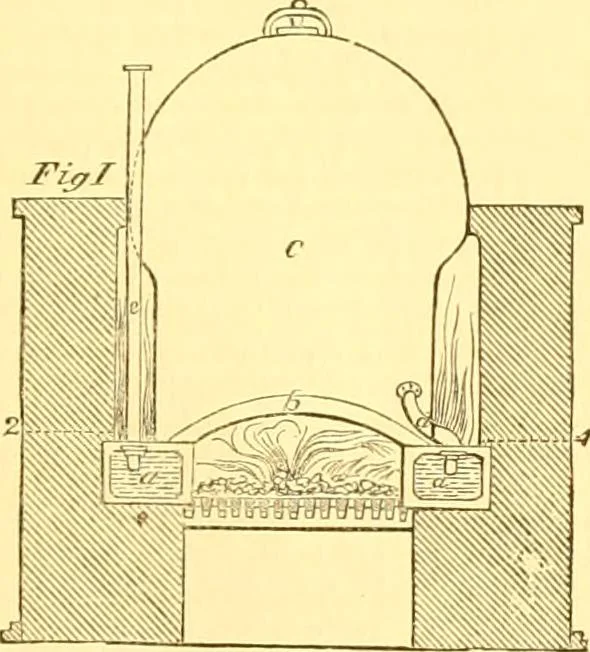

in.irv wagon-shapedboiler. It consists of two rectangular vessels or chambers of iron, setparallel to each other, one on either side of the fire-place, and con-nected together in front by a hollow arch, made also of iron. Thesevessels or chambers are intended to receive the water from the… … fitted according to tb- invention, the front end plates of the clumbersb-fore-mentioned being removed; and fig. 2, is a sectional plan of theimproved generating apparatus, taken in the line 1, 2, of fig 1 a „
