The Civil engineer and architect's journal, scientific and railway gazette (1839)
London : [William Laxton] · leaf 356

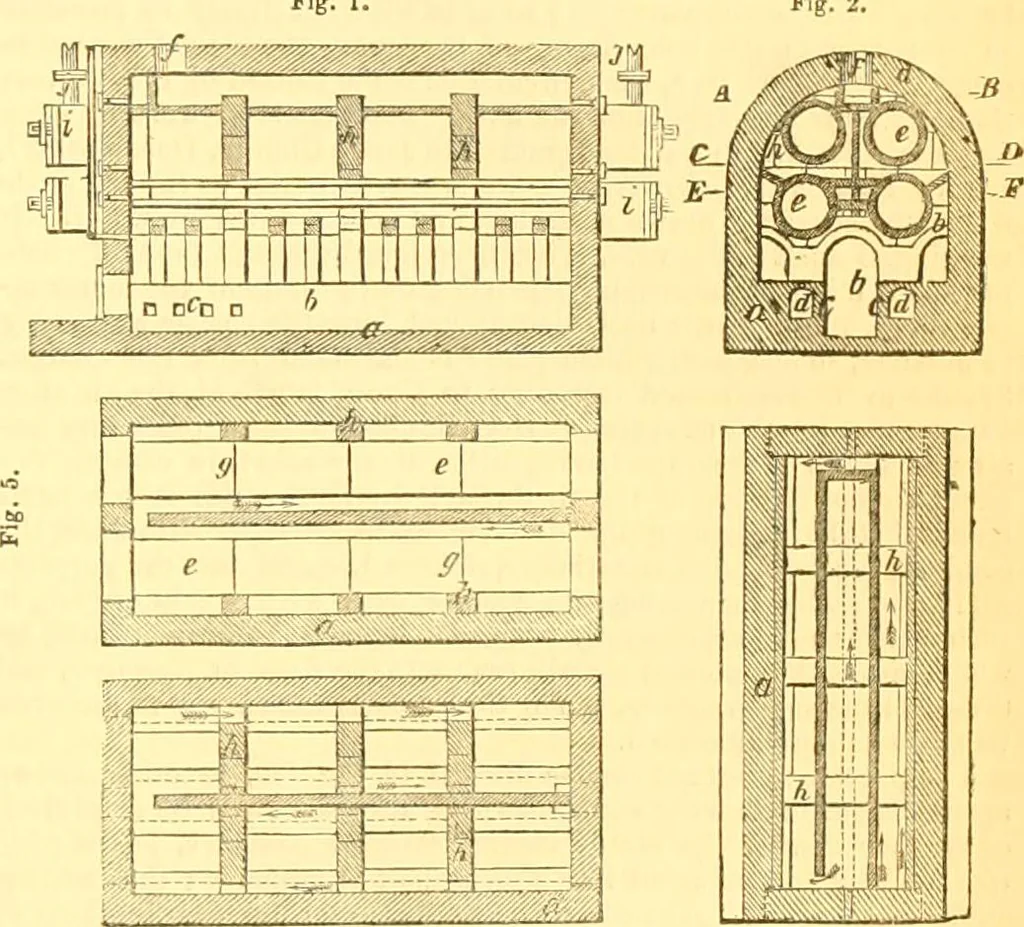

ovements in furnaces, and in the Jtues and tilesused in the construction thereof.—Granted February 8 ; Enrolled Aue.8, 1847. This invention relates to a novel arrangement of the flues and otherparts of a furnace, whereby the heat is more effectually applied ; andalso in certain tiles to be used in… … Fig. 4. Fig. 3. Fig. 1 is a longitudinal vertical section of the furnace; fig. 2 is atransverse vertical section thereof; fig. 3 is a horizontal section, takenon the line A B of fig. 2; fig. 4 is a similar section, on the lineC D; and fig. 5 is a section on the line E F. n is the brickwork ofthe…
Architecture · Civil engineering · Science
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
