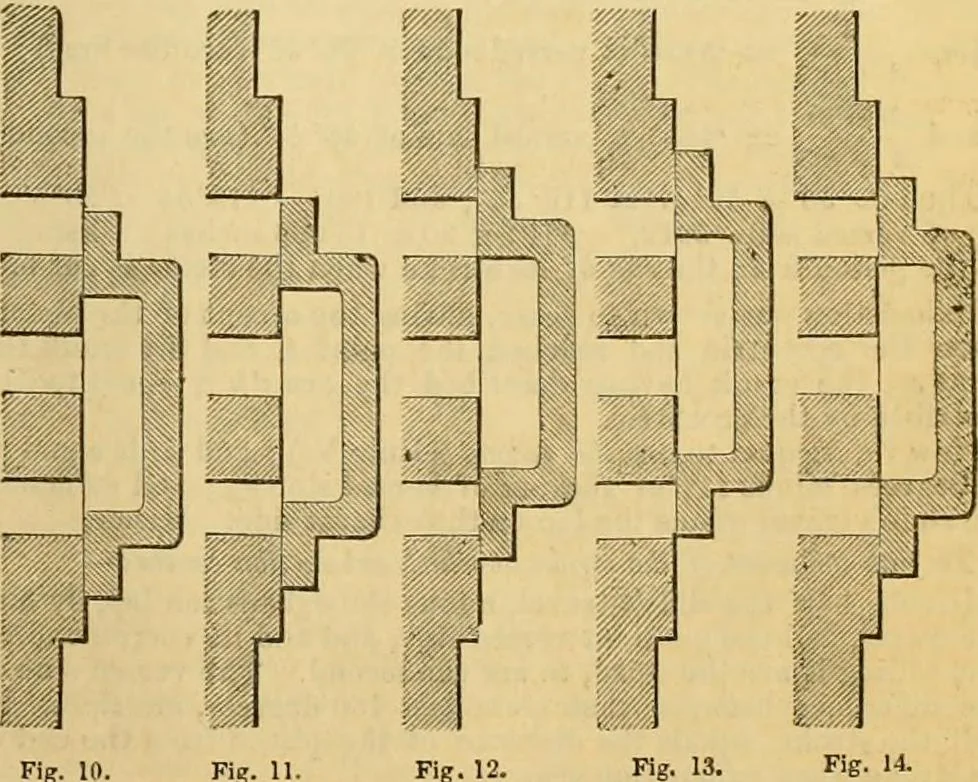

the steam ports; and the line ed both the travel of the slide andstroke of the piston. Tlien, supposing c/t to represent the leadof the slide, ai will be the position of the eccentric when that ofthe crank is a e; the slide occupying the position shown iu fig. 10,and the piston being at the top of… … Fig. 10. Fig. 11. Fig. When the eccentric reaches the point k, the port cd will be fullyclosed (as shown in fig. 11), and the piston will have descended to/, the arc e m being equal to the arc i /.-. Again,—when the ecxren-tric arrives at n, the .slide being then brought into the positionfig. 12,…
