Common-sense stair building and handrailing (1903)
Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 44

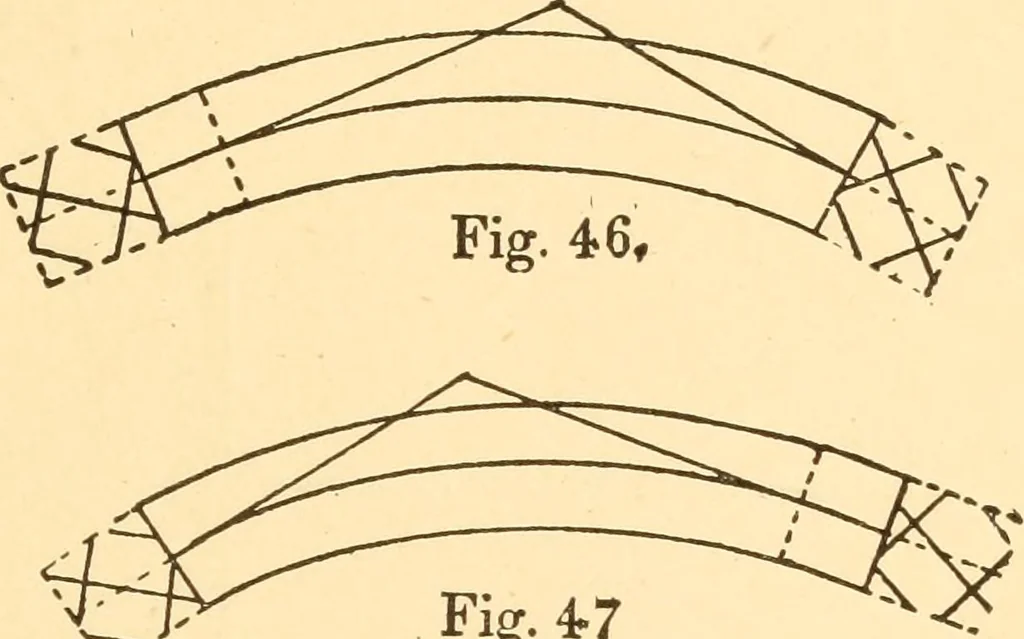

attached will give a clear insightinto the method of lining out the present examples. The next examples show a method of laying downthe rail for a flight of circular stairs. Fig. 48 showsthe plan with cylinder and risers cutting around thecenter of rail and tangents. The joints are located atA, B,… … F%. 47 40 COMMON-SENSE HANDRAILING and Fig. 50 the landing wreath; these are drawn inthe manner as shown in previous examples, making
Stair building · Hand-railing
