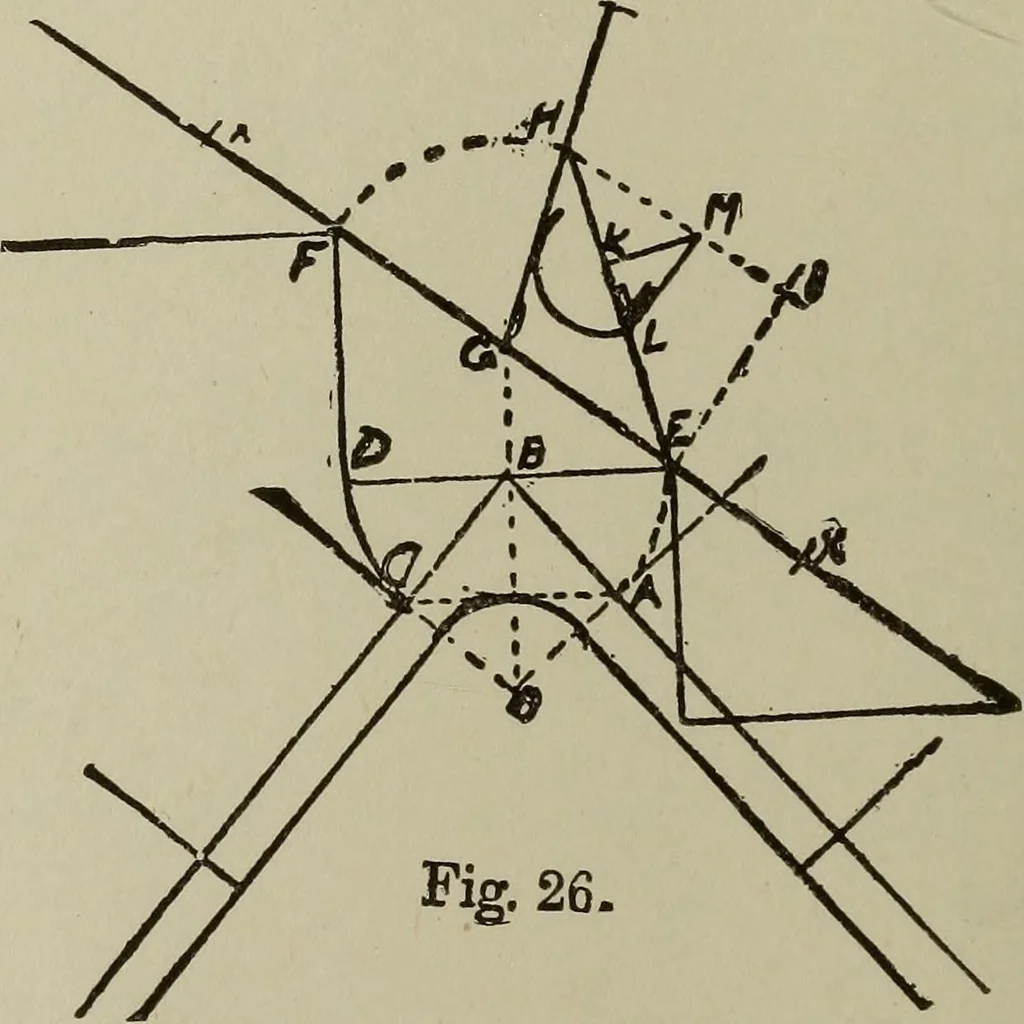

ore stated, these twoexamples represent on the ground plans obtuse andacute angles at the return landings; and in the forma-tion of rails to meel the require>nents for these stairs,the student will have covered the ground for the for-mation of rails for nearly every kind of rail requiredfor a… … Fig. 26 shows the development of the angle of tan-gents for the face mould and the bevel for springingthe wreath. Draw the angle ABC on center line ofrail as shown; draw dotted line from center O to B;draw DE at right angles to OB; from center B swingaround A and C to D and E; set up one riser from…
