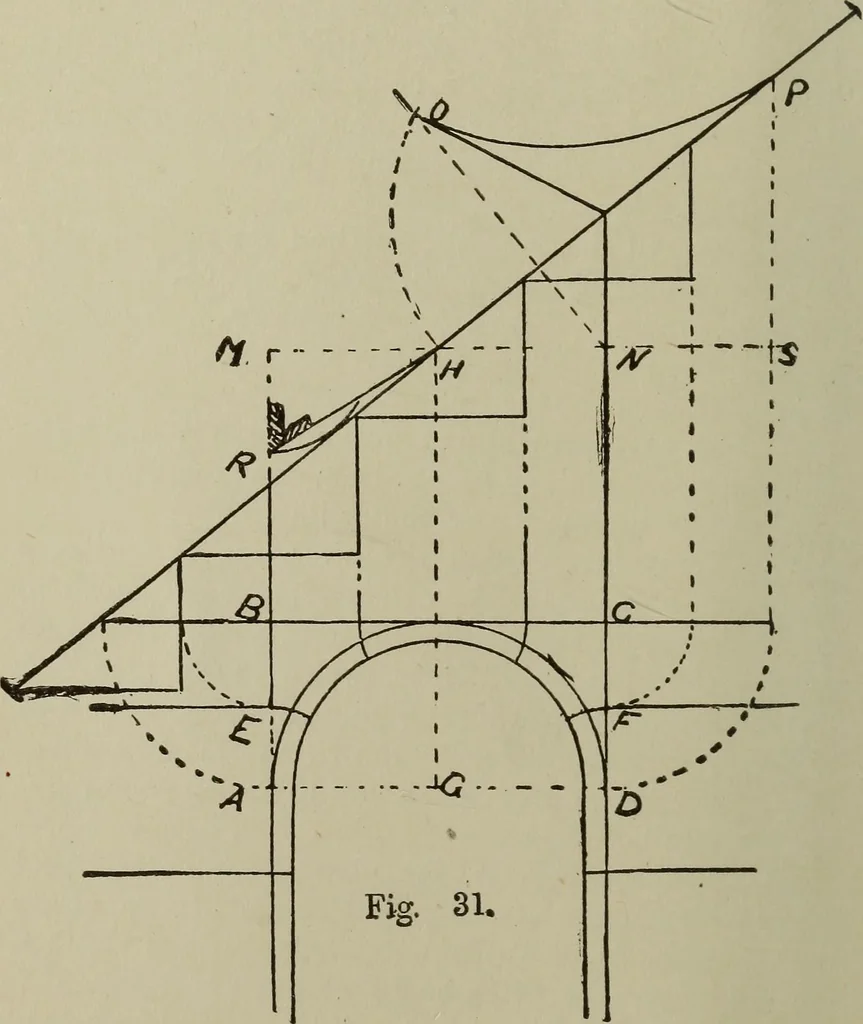

risers Eand F; place the pitch-board at the point where Ecuts the line BC, keeping the risers parallel with BA,and the raking side cutting through the point whereA swings around to BC. Mark the step and riser andcontinue the elevation as shown; draw the pitch-line,tiraw GH, continue DC to L, draw… … line drawn from N at O; connect LO, and the triangleCLP gives the tangents for the face mould. The pitch-line being straight, the tangents are all ofequal lengths, so it will be seen at once that the facemould obtained will be the same for both upper and FIRST METHOD 31 lower wreaths, and the bevel…
