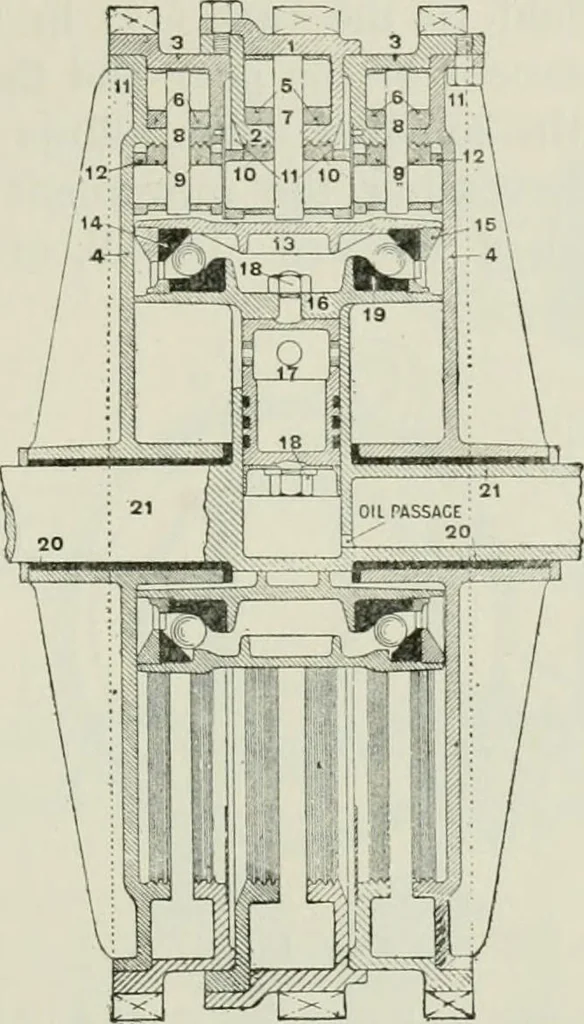

oes are caused to grip the rings on the peripheryof the gear and the whole rotates; while when they move in SOME TYPES OF PETROL CAR 125 the other direction the shoes are disengaged and sHde backfreely on the rings. When the eccentric is quite central, nomovement is conveyed to the strap, but as… … FIG. 8. SECTION OF THE HUTTON GEAR. a 2—Case for Middle Toggles.3 4—Case for Side Toggles. 5—Middle Toggles.6 0—Outside Toggles. 7—Middle Toggle Link. 8 S—Side Toggle Links. 9 9-—Inside Toggles. 10 10—Middle Inside Toggles. 11 11—Middle Inside Toggle Links. 12 12—Outside Toggle Links. 13—Eccentric…
