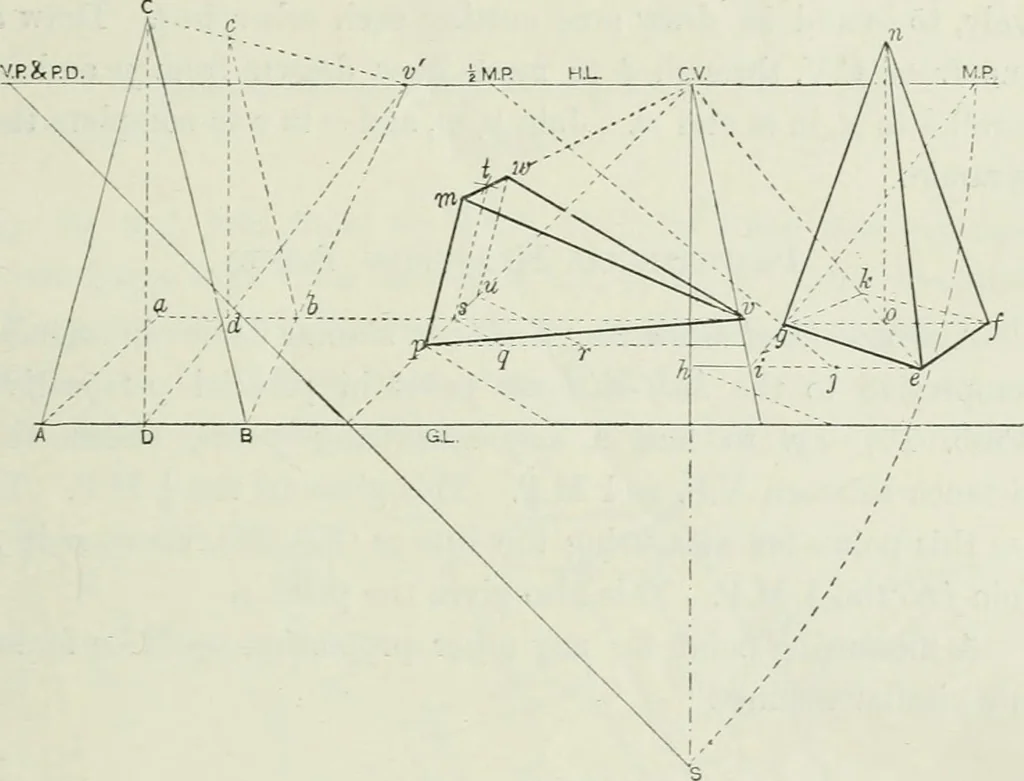

=!.Fig. 65. 1. Find tlie necessary working lines and points, us well asthe point e (Prob. 5). As each edge of the base is inclined at an angle of 45° withthe P.P., the P.D. will be one of its vanishing points. Find its M.P. (Prob. 12). Draw e to Y.P. Set off ei = 3 … FiR. 65 times Jti, and join / to M.P., meeting the receding line from ein ff. Draw the horizontal line gf Join e to C.V., cutting thisline in 0. Make of equal to (/o, and join / to V.P., meeting eoproduced in k. Join gk: Then grfk is the base of the pyramid.Observe that we have been able to draw…
