Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 115

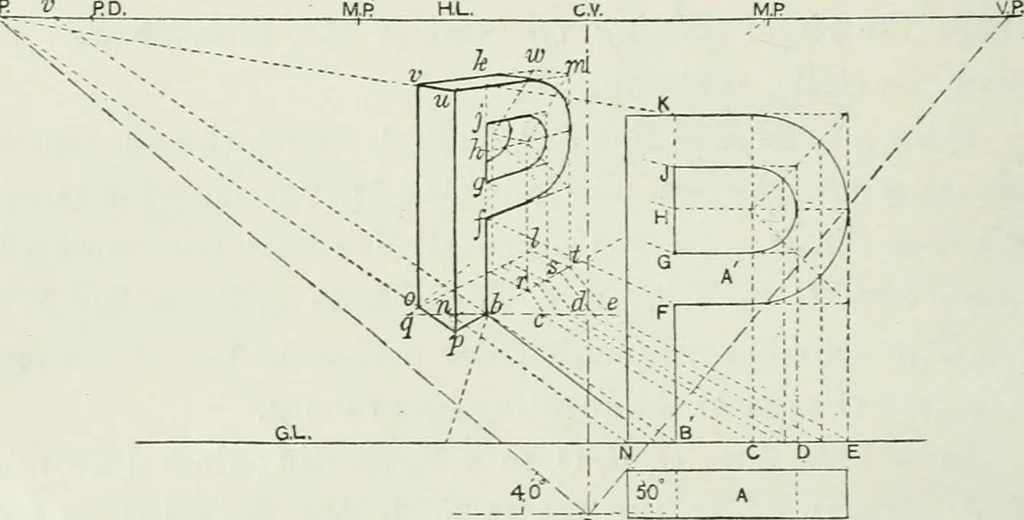

e diagram, so that the corner B may heon the G.P., 3 from the G.L., and 2 to the spectator s left,and the face of the letter in a rertiecd plane inclined to theright at an angle of 50° with the V.V. Distance of P.P. = 7. Height of cijc = 6. ScaleFisz. 72. 1. Find the necessary working lines and… … S B Fis. 72 etc., as in the preceding problem, and draw vertical lines fromthe several points to meet the G.L. in the points C, I), E, etc.Draw lines from these points to v to meet the horizontal linethrough h in the points e, d, e, etc. This point (r) is the Y.P. for all lines parallel to B//,…
