Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 118

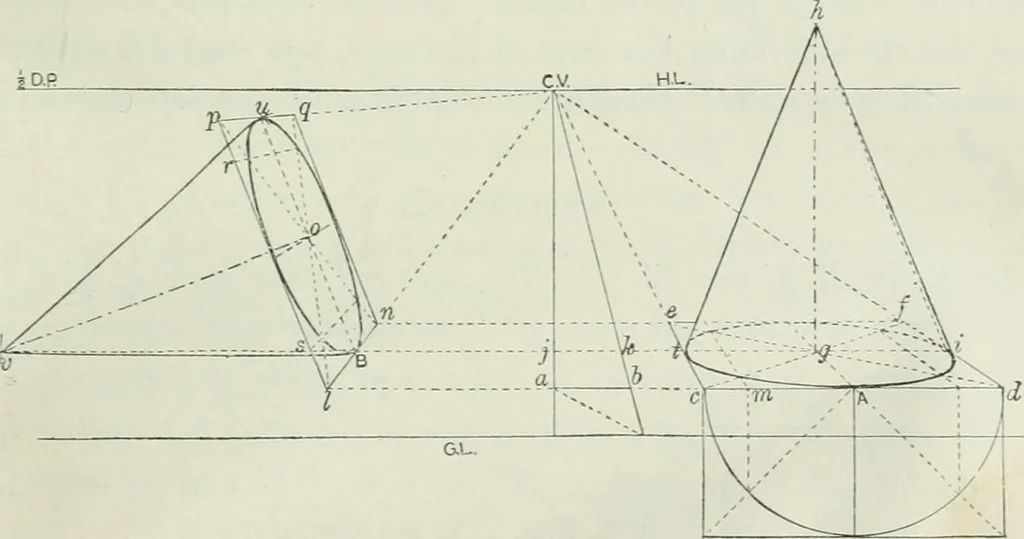

llest circle could bedetermined iu a similar manner from the line QP. Proble:m 31 1. Draw a right cone 5 liigh, irith base 4 in diameter, standing on the G.P., the point A being 2 frotn the P.P. and 4 fothe spectators right. 2. Draiv a cone of the same dimensions, Iging on the G.P. vjith its axis… … the \ D.P. and the point A (Prob. 10). Draw a horizontal linethrough A. Set off on each side of A the distances Ac and Ad,each equal to twice ah. Join these points to C\. and complete ■ 96 COMPLETE PERSPECTIVE COURSE chap. the square cdfe. Draw tlie diagonals, etc., to tins square, auddetermine the…
