Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 130

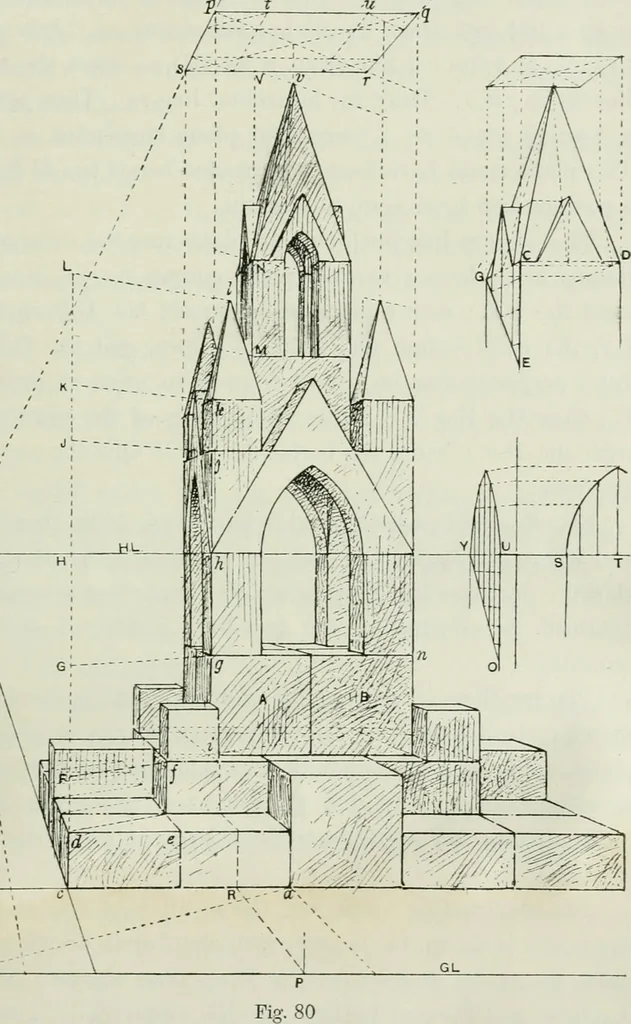

lf of he. Join the top corners d and c of the left-hand block to C.V.,and measure five receding feet, as shown, by means of the P.D. The student should be able to determine the position of thesuccessive tiers of blocks from the construction shown, i.e. byerecting a perpendicular at d, and setting… … io8 COMPLETE PERSPECTIVE COURSE chap. The tops of the blocks A, B, etc., are too narrow to allow usto construct with accuracy the receding widths of the blocksresting upon them. In such a case it is advisable to constructwhat is called a floating plane, which we do in the followingmanner:— Produce…
Perspective
Internet Archive · OCAD University Library · Public Domain Mark 1.0. Free to use for anything.
