Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 148

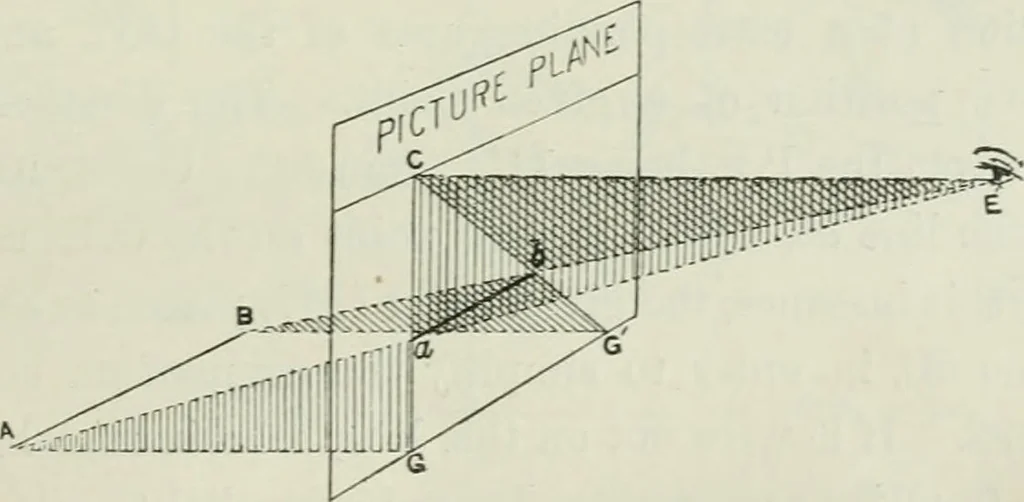

od of perspective (p. 115) ? 2. What relation has the plan of the object, drawn below theG.L., to its perspective representation (Fig. 84) ? CHAPTEli YIII SPECIAL PROBLEMS The problems in this chapter Avill be found to be useful iu thepractical application of perspective. PltOBLEM 42 Tu ddcnniae,… … Fiir. 9-J will consider the principle governing a point in perspectiveFig. 92 is a perspective view in which a line AB is lying onthe G.P., and the line ah is its perspective representation onthe P.l\ 126 COMPLETE PERSPECTIVE COURSE A visual ray from the point A intersects the P.P. in thepoint a,…
