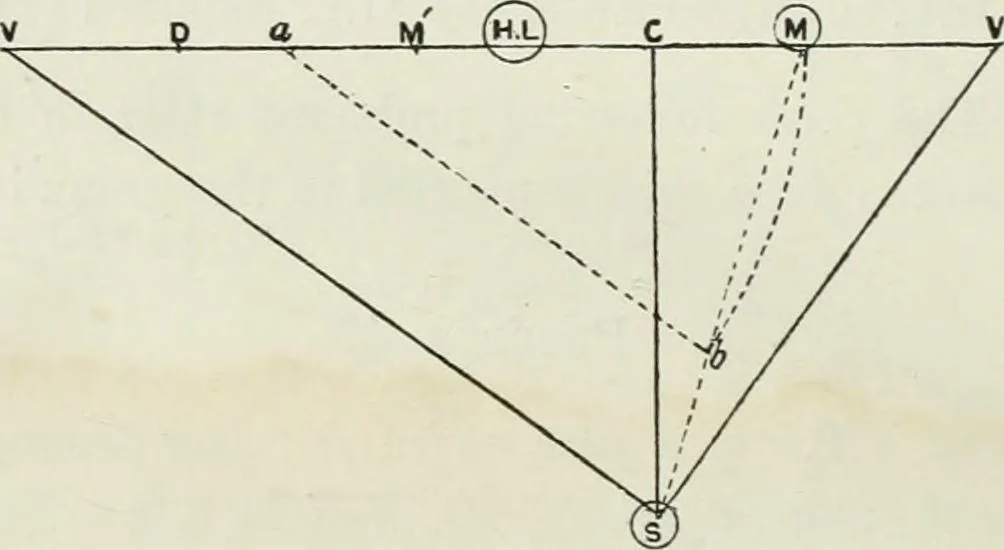

Fig. 97 centre, and radius aY, draw a semicircle. Draw a perpen-dicular to H.L. at C, to meet the semicircle in 8. With C ascentre, and CS as radius, draw an arc to meet H.L. in D.With Y and Y as centres, and YS and YS as radii, draw arcsto meet H.L. in M and M. Teoblem 48 The H.L., station point,… … Fig. 98 S to M. Assume any point a on H.l>. as centre, and with VIII SPECIAL PROBLEMS 131 radius ^I, draw an arc to meet SM in h. Joiu ah. Drawa line from S, parallel to ah, to meet H.L. in V. The otherV.P. can be found by Prob. 45, the remaining working pointsby Prob. 47. Proble:m 49 The P.l).,…
