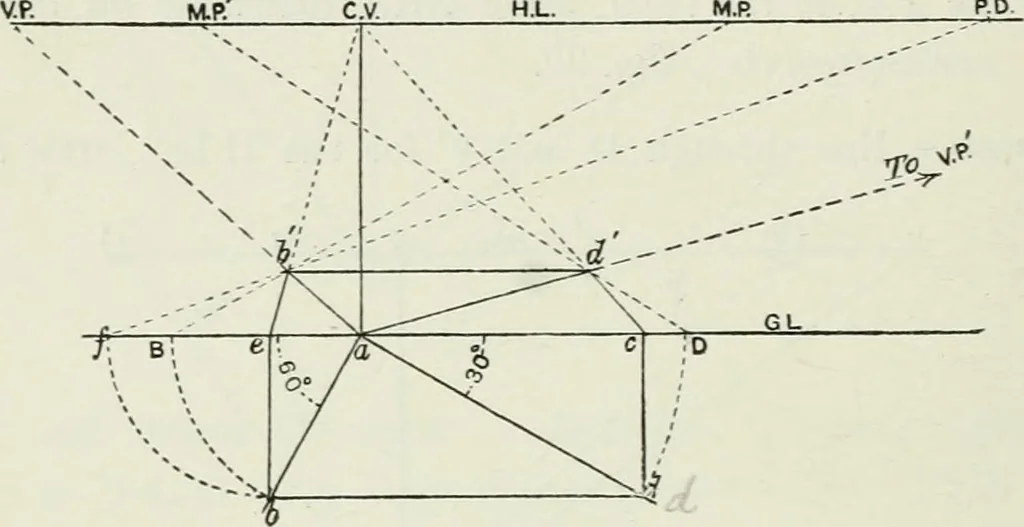

., meeting tlie G.L. in a. Set off at a,angles of 60° and 30° with the G.L., as in the tigure. 13- COMPLETE PERSPECTIVE COURSE ill any convenient position draw a liorizontal line hd. Drawlines from h and d, at right angles to G.L., and meeting it in thepoints e and c. Then ccdb is a rectangle. Draw… … Fig. 100 meet the receding line from c in d. Then ccdb is a perspectiverepresentation on the ground plane of ecdh. Draw lines from(f through h and d to meet H.L., and we get V.I*, and Y.!.,the vanishing points required. With a as centre, and radius ab, draw an arc to meet G.L,in B. Draw a line from…
