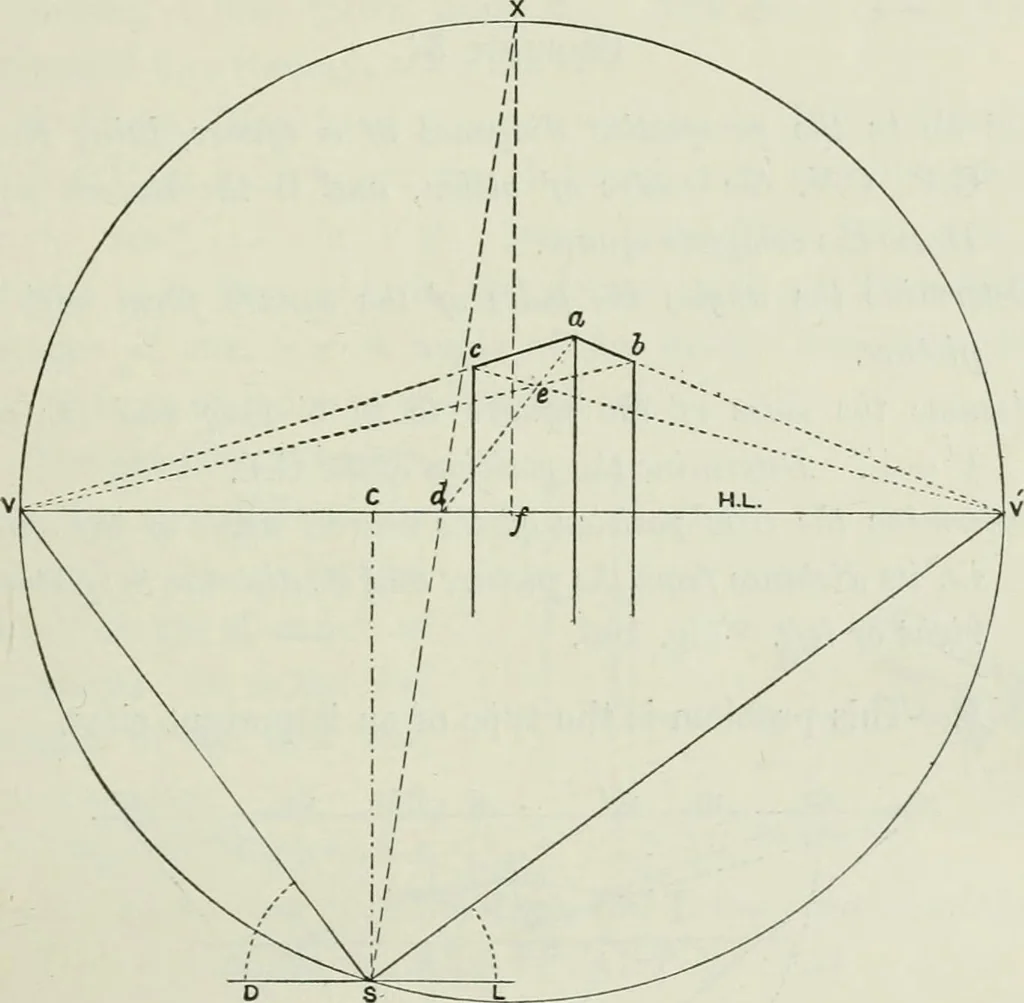

Y. From theend of the seventh division from h (q) draw a line parallelto n\, to meet the line AY in j>. Then gp is the requiredline. The triangles hqp and hyiY are similar. Thereforehp -.pY : : hq : qn. SPECIAL PROBLEMS 137 Problem 53 The top of a square toiver hring given in perspective, vith… … Fig. 104 H.L., to determine the vanishing points Y and Y. Draw a linefrom h to Y, and from c to Y, intersecting in e. Join ae, and pro-duce the line to H.L. This will determine the diagonal vanishingpoint d [43]. Bisect the line YY in /. With / as centre, and /Y asradius, draw a circle. Draw a line…
