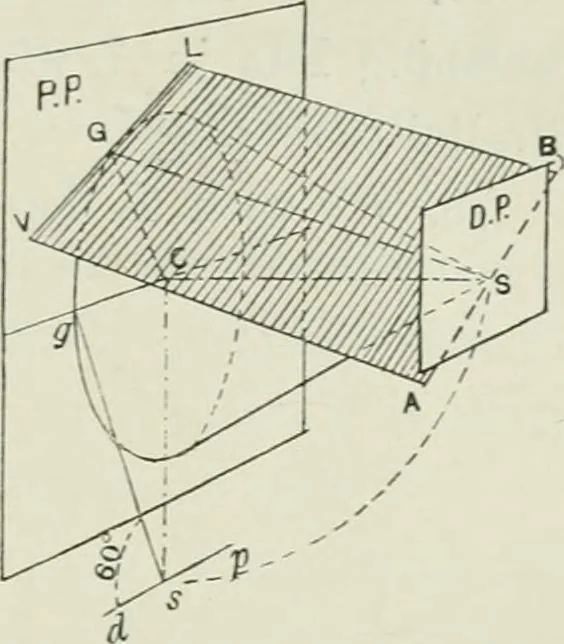

f ordinary measuring points,and fully described in Article 20, i.e. they are really the vanish-ing points for the bases of isosceles triangles, e.g. np (Fig. 110) isequal to no, therefore nop is an isosceles triangle of which op) isthe base. Vanishing Lines [33] The following may be taken as a… … Fis?. 115 A line meet the picture plane; its intersection with the jncture j^l^neis the ranishinfj line required. Let AHLV (Fig. 115) represent a plane parallel to a givenplane—called an oriijinal jj»/fif7tf—passing through the station point, andmeeting the picture plane in the lineVL. This line VL…
