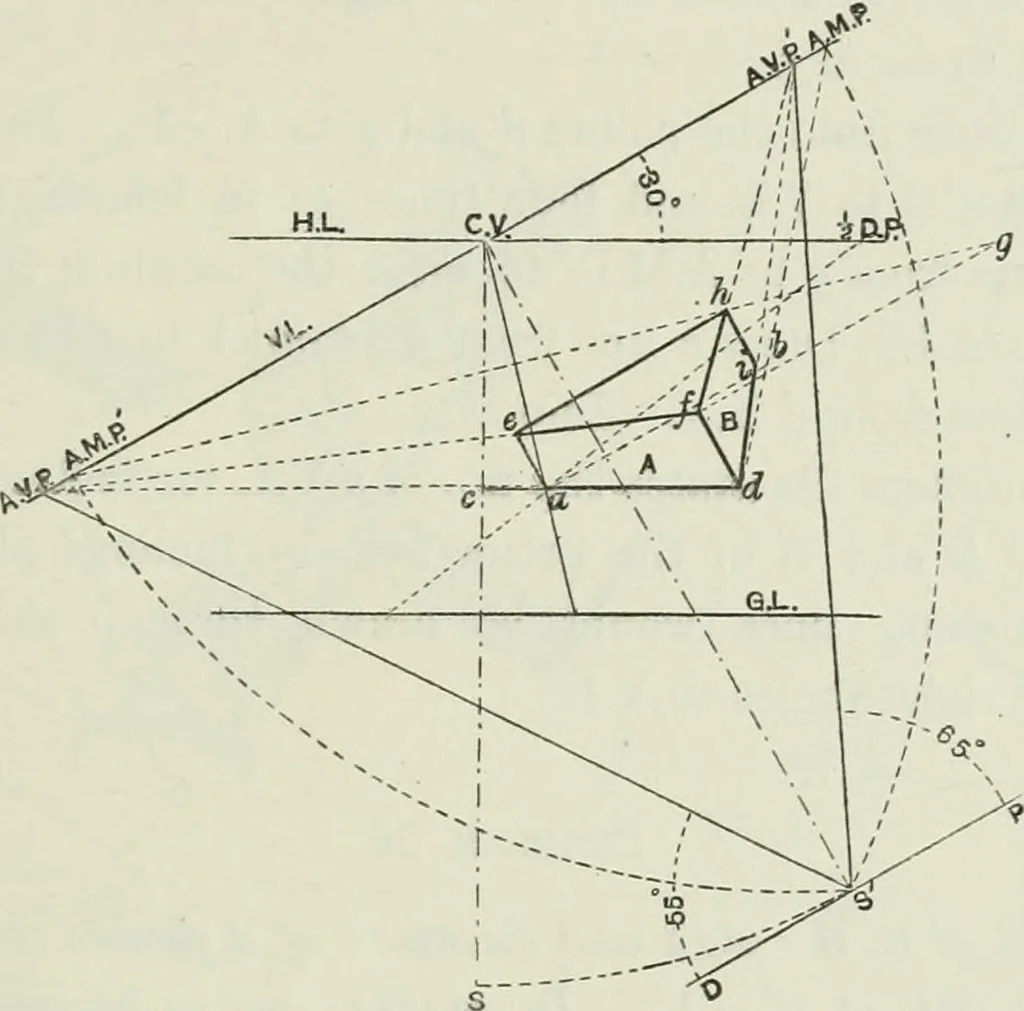

le i=l.Fig. 122. Determine the G.L., H.L., C.Y., and perspective scale, as inProb. 5. Also the i D.P., and the given point of the prism (a),as in Prol). 10. riiAP. X SOLIDS IN COMlLEX POSITIONS i6i Draw through C.V. a line making with H.L. an angle of30 on the riglit. This is tlie vanishing line… … Fig. 122 meet this line in S. iJraw the line D.P. (directing plane; atright angles to this line [69]. As the prism is to be equilateral, and the right-hand sideis inclined at an angle of 65° with the P.P., the left-handside must recede at an angle of 55° (60°-f 65°-f 55= 180).Draw lines from S…
