Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 208

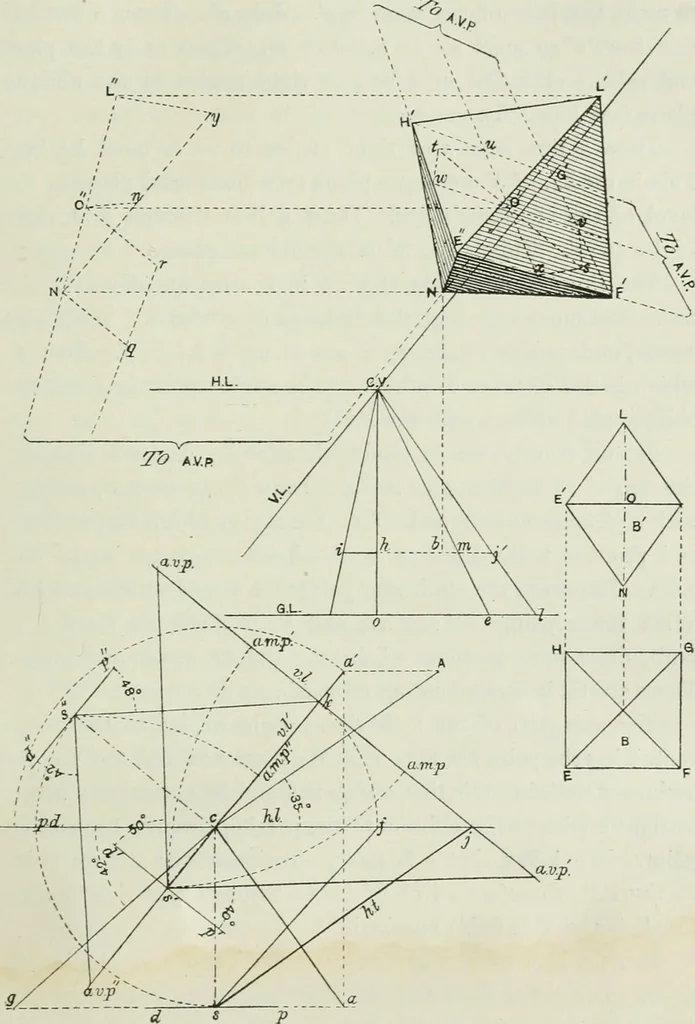

d to the G.P. at an angle of 55,the line must be inclined to the G.P. at an angle of 35; andsince the oblique plane is inclined to the P.P. at an angle of48°, tlie line must be inclined to the P.P. at an angle of 42 . Draw a line from c, making, with h.l., an angle of 42 , andproduce the line to… … Fig. 132 of tlie base of the cone projected on the P.P. Draw a line at c, i86 COMPLETE PERSPECTIVE COURSE chap. making, with h.L, an angle of n.V, and produce this line till itslength is equal to eg, to find A. 3)raw a horizontal line from Ato meet the base of the cone in a. Join ac. Draw a…
Perspective
Internet Archive · OCAD University Library · Public Domain Mark 1.0. Free to use for anything.
