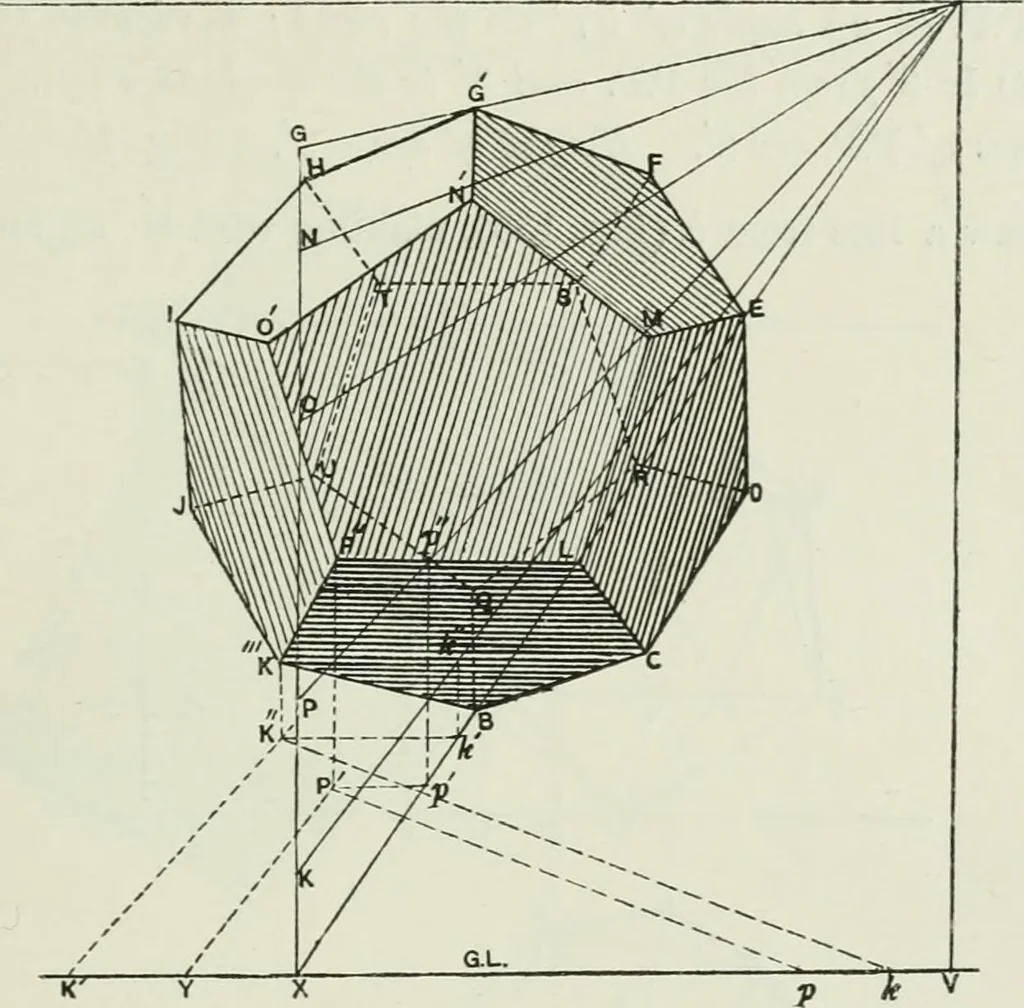

Fi-. 1.33 ^ Tlie method of projectiug the regular solirls, geometrically, is given iaSpantous Comphte Geometrical Con me: Matiiiillaii and Co. SOLIDS IX COMPLEX POSITIONS 189 through B to meet G.L. in X. Draw a vertical line at X, andset off upon it the distances XK, IvP, etc., equal to twice… … Fit;-. Voi Set off VY = twice v// (Fig. 133), and join Y to C.V. Setoff Y/^ = twice yjy (Fig. 133), and draw a line from p towardsP.D. to meet the receding line from Y in P. Draw a horizontalline from P to meet the receding line from X in p. Draw avertical line at^) to meet the receding line from P…
