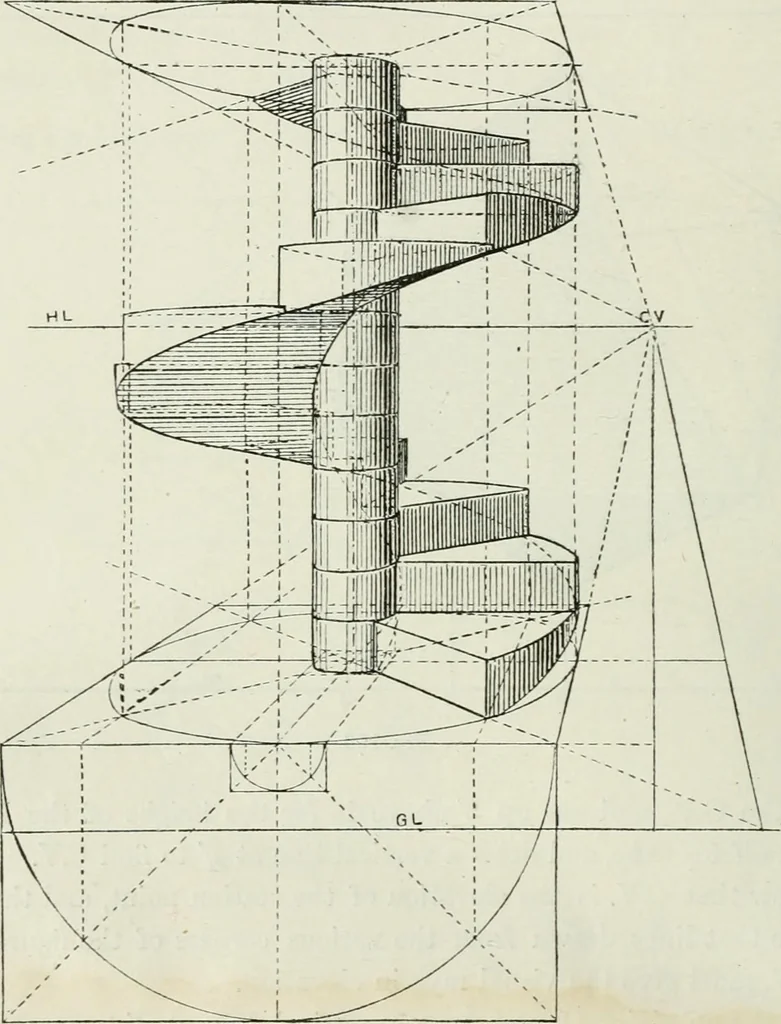

rawn from / to C.V. in /. Then / is the position of thepoint j on the P.P., i.e. where the visual ray from the point jto spectators eye intersects the IM. [9]. 192 COMPLETE PERSPECTIVE COURSE Xow iiiid the G.L., H.L., and C.Y. (Fig. 136), to a scale uf1 = 1. We shall not require tlie V.D. Set oft… … Fig. 137 Students in the advanced stage will also be required to workout problems of a similar nature to those set in the elementary X SOLIDS IN COMPLEX POSITIONS 195 stage, but more difficult in character. Fig. 137 is an illustrationof Prob. 28 in an advanced form, i.e. its construction is basedon…
