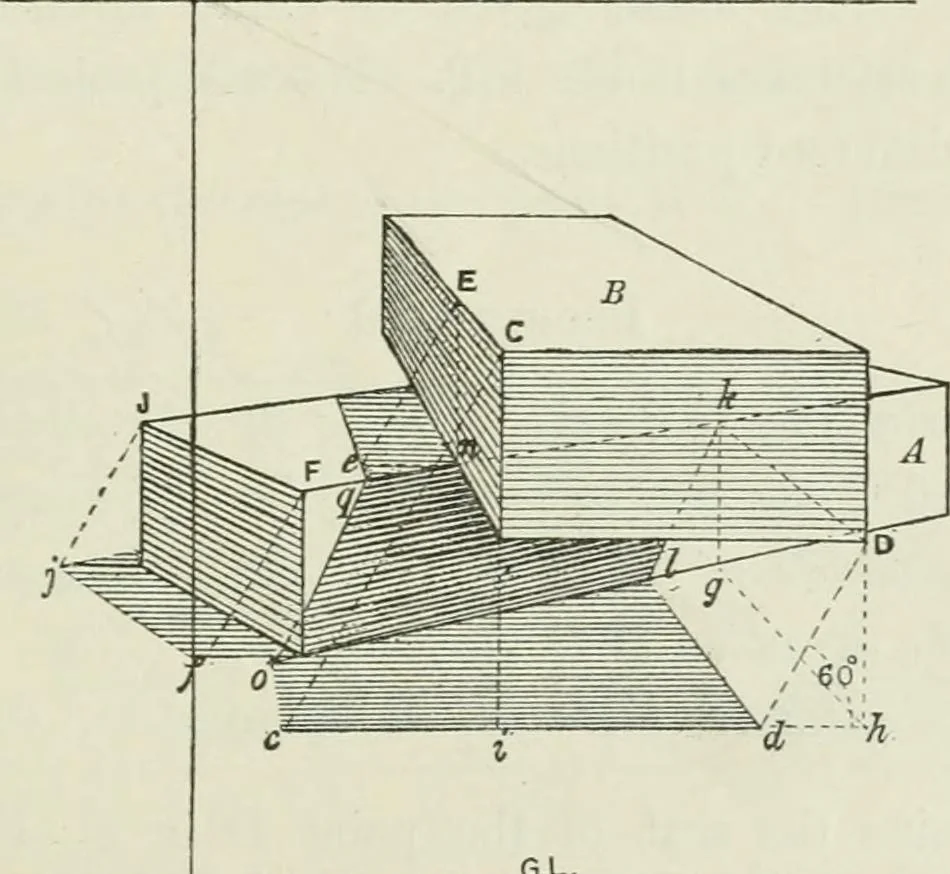

HADOWS 203 106. If a line is parallel to fhe plane of projection the lineand its shadoiv are also parallel to eaeh other, e.g. d& is persjoec-tivel]/ parallel to DE in Figs. 142, 143, and 144. Xote.— The numhered articles are eontiniied at p. 228. Problem 69 Project the shadotcs of the two… … G.L. Fig. 145 a line from D towards C.V., meeting the upper edge of the blockA in Ic. Draw a vertical line from k to meet the lower edge ofA in g. Draw a line from C.Y. tlirough g to meet a verticalline from D in h. Then h is the seat of D. Draw a line from D, at an angle of 60° with the G.P.,…
