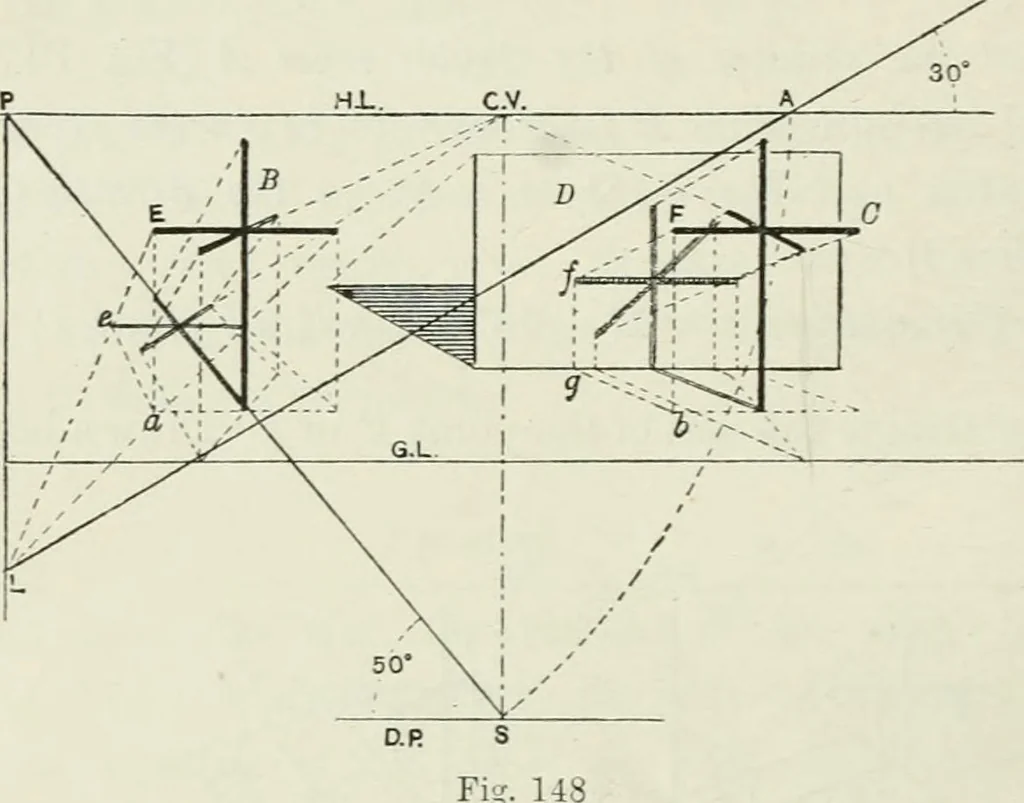

edge of D in h. Determine theother points in a similar manner, and join them, as shown. 2o6 COMPLETE PERSPECTIVE COURSE Peoble.m 72 1. Project the shadoic of the dov.Ue cross B (Fig. 148) on the G.P.; the sun to be in front of the incture in a %-erticalplane receding to the left and inclined to the… … with D.P., and produce it to meet II.L. in P. With 1 as centre,and its distance from S as radius, draw an arc to meet H.L. inA. Set off an angle of 30 at A with H.L., and produce it tomeet a vertical line from P in L. Then ]j is the Y.P. of thesuns rays, and LP the Y.L. of the plane of shade. Find…
