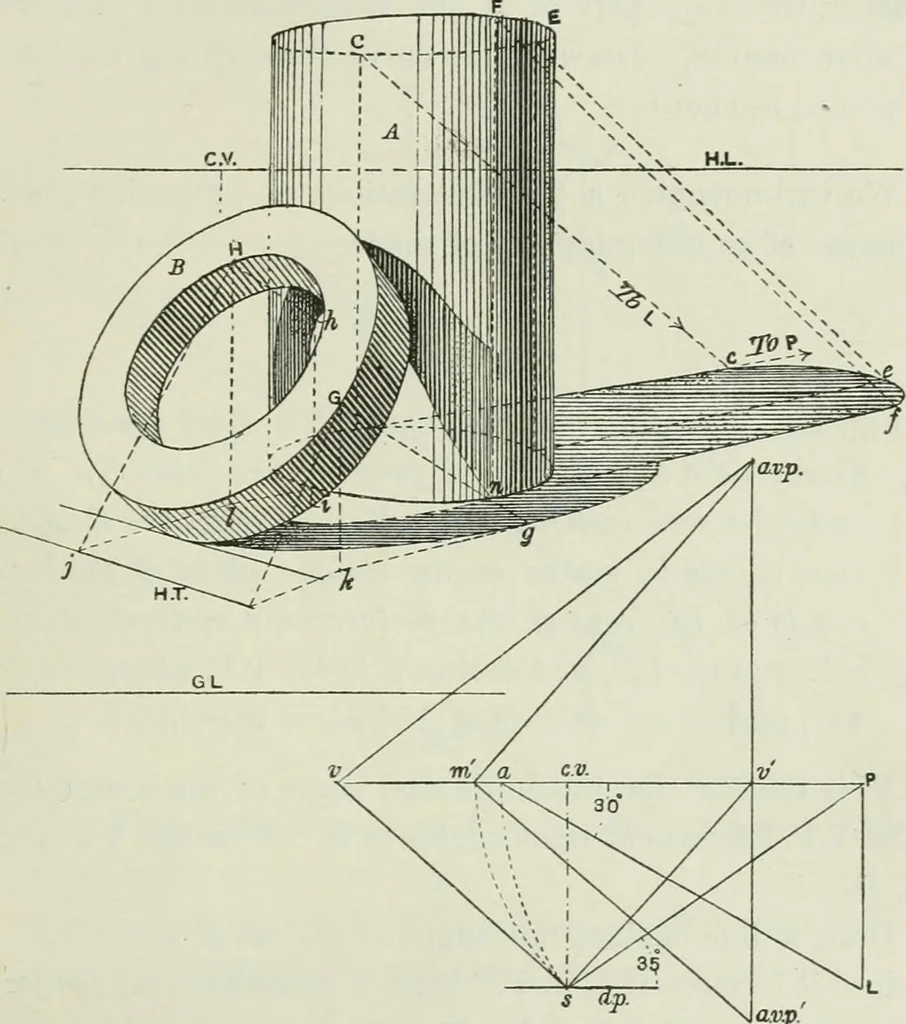

of thecylinder A, and find its seat in a. Draw a line from n to P,meeting a line from F to L in /. Select any number of pointsin the same curve, as C and E, and determine their shadows ina similar manner. Draw a fair curve through the shadows of XI SCIOGRAPHY OR THE PROJECTION OF SHADOWS 213 these… … CLV.p. Fis. 152 e.(/. let H be one of the points selected. Draw a line from A.^^.P.through H to meet H.T. in/ Draw a line fromy to V to meeta vertical line from H in l. Then I is the seat of H. Determinethe seat of the point G in a similar manner in k. Draw a linefrom I to P to meet the base of the…
