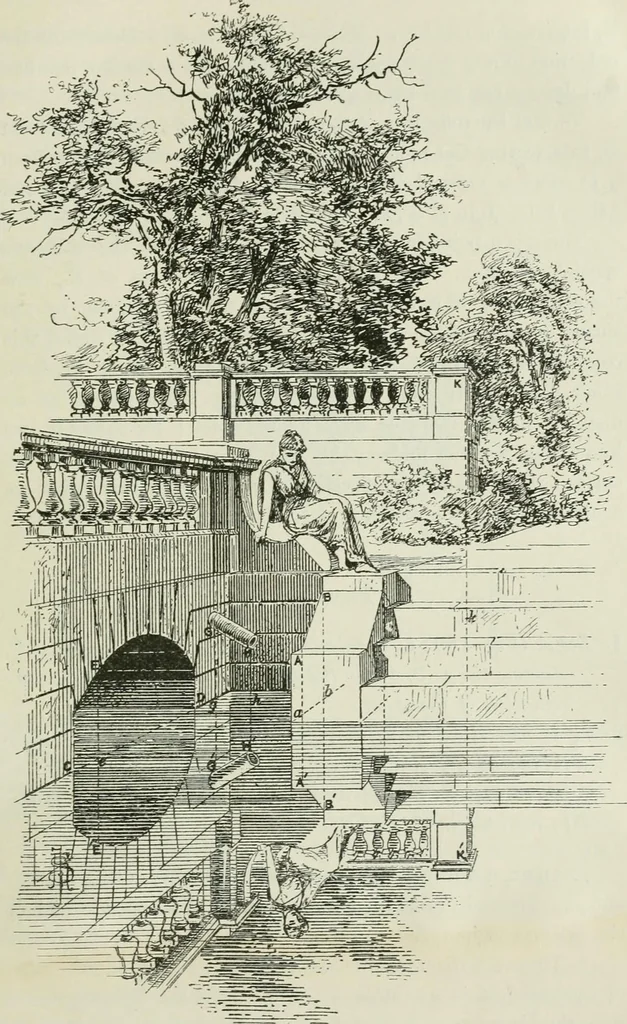

of reflection. Thereflections are determined by selecting certain points on theobjects, and repeating their distances from the plane of reflec-tion, below its surface, on lines at right angles to it; e.g. the lineAft is produced, and the distance aA is made equal to aA ; theline B& is produced,… … Fi- ir.9 224 COMPLETE PERSPECTIVE COURSE chap. E, intersecting CD in c. Make cE equal to eE. Determine thereflection of any otlier points in the curve in a similar manner,and draw a fair curve through them. To lind the reflection of the pipe. Draw a vertical line fromG, intersecting CD produced in…
