Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 275

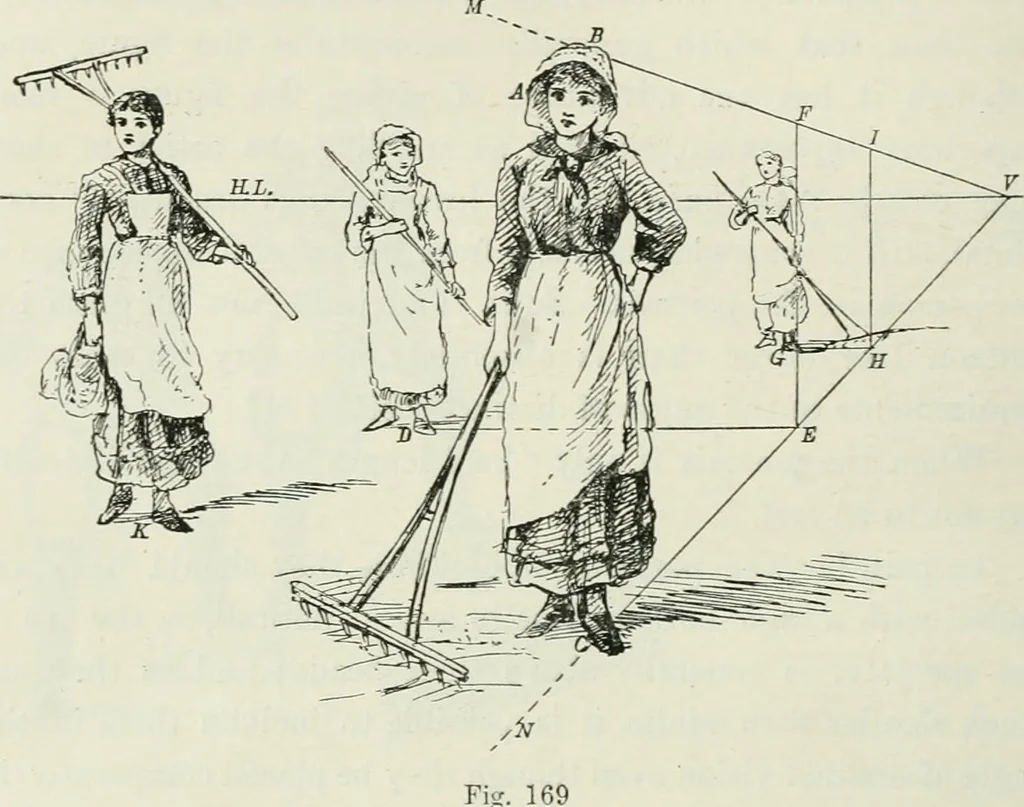

parallellines [13], and form a perspective scale (p. 50) for objects of agiven height, i.e. that of the figure A. Suppose we wish to draw, standing at D, a figure of the 252 COMPLETE PERSPECTIVE COURSE same height as A. Draw a horizontal line from D to meet theline CV in E. Draw a vertical line at… … the spectator, as shown at X and SI, we could determine, in thesame manner, the height of a similar figure placed nearer thespectator tlian the figure A. It should be noticed that the horizon line intersects eachfigure in a similar position, i.e. about three-quarters of its heiglit,from which we…
Perspective
