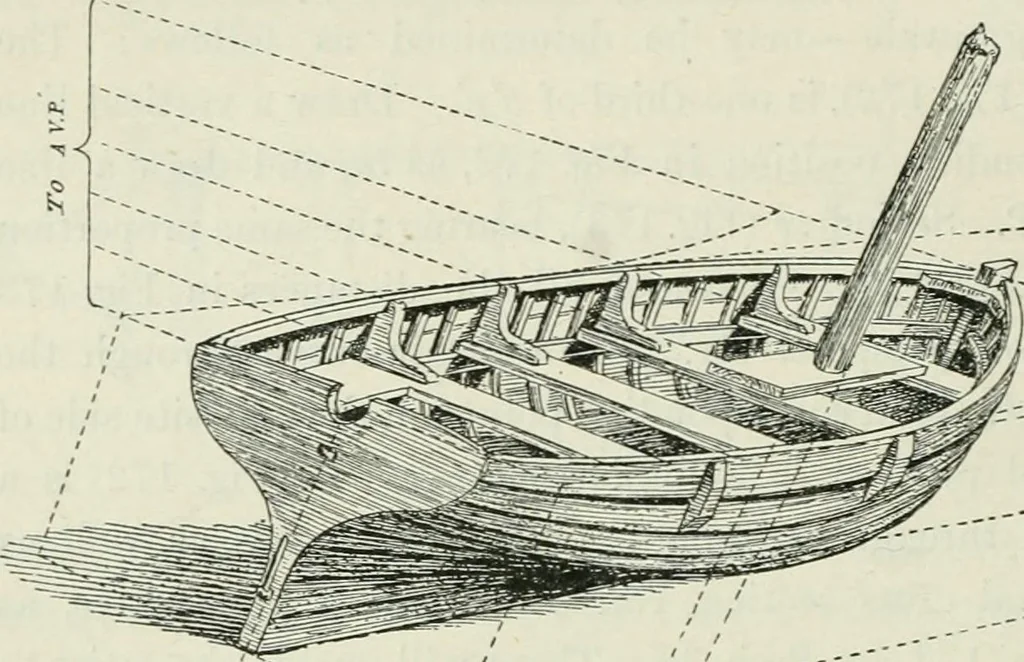

n line [20]. Fig. 175 shows the same pruiciple apjdied to^a boat in s 258 COMPLETE PERSPECTIVE COURSE oblique perspective. If it were resting on level ground, V.P.would be ou the horizon line [20] ; and if the stern of the boatwere in a vertical plane, A.A^.P. and A.V.P. would be on thesame… … Fig. 175 He will then find, after a little practice, that the delineation ofthe difficult curves of a boat will be greatly simplified. Thelines of the solid wall form a guide, by means of which theproper direction of the curves will be apparent. It will alsoenable him to correct, by the laws of…
