Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 282

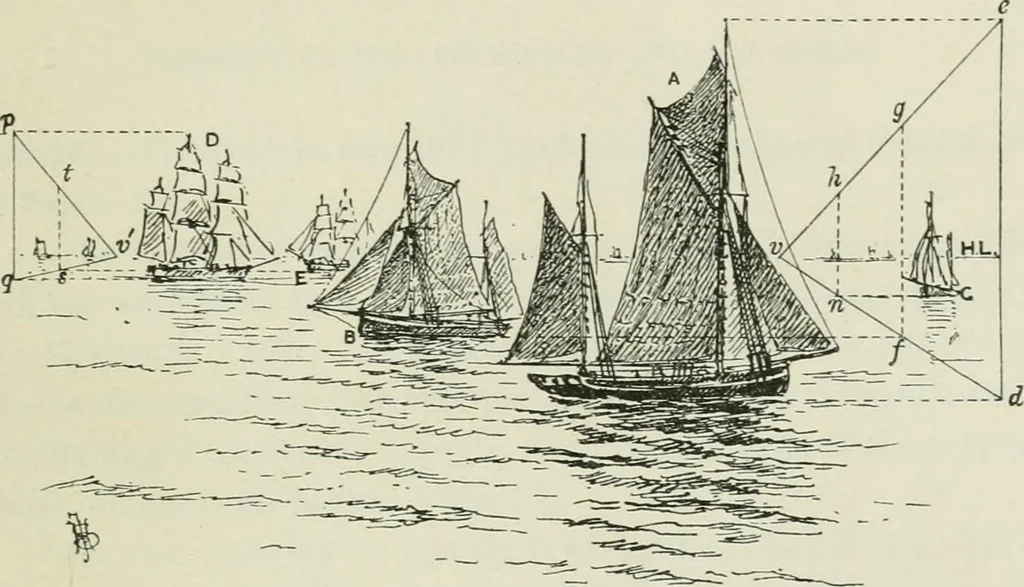

re, at differentdistances.. Draw a horizontal line at the water line of th^ boat, PERSPECTIVE HINTS FOR ARTISTS 259 aud ill any convenieiit position on this line, d for instance, drawa vertical line equal in length to tlie total height of the boat, asdc. Assume any point v on the H.L. for a… … Fk. 176 placed at B. Draw a horizontal line from B, to meet the linedv in /. Draw a vertical line at / to meet the line cv in g.Then fg is the height of the boat required. The line dv is at the sea level, aud the lines dv and evform a perspective scale (p. 50), for objects of the sameheight as the…
Perspective
