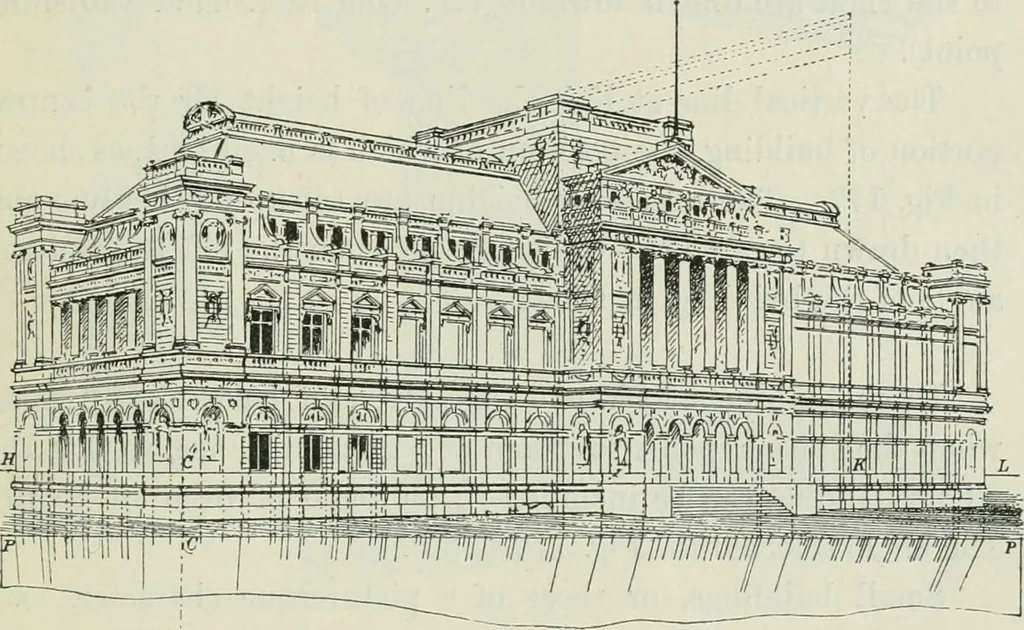

ion to tlie line PP (Fig. 177), and lines aredrawn on it from the several angles of the building to a corre-sponding station point. The longest lines on the strip of papermark where the visual rays from the principal angles of thebuilding intersect the picture plane, the shorter lines the anglesof… … Fig. 179 Having selected the position of the line HL (horizon line),to represent the level of the eye, place the strip of paper in anyconvenient position, with the edge PP below HL and parallelto it. Note.—To show the detail more clearly this is drawn to alarger scale tlian it is shown in Fig. 178.…
