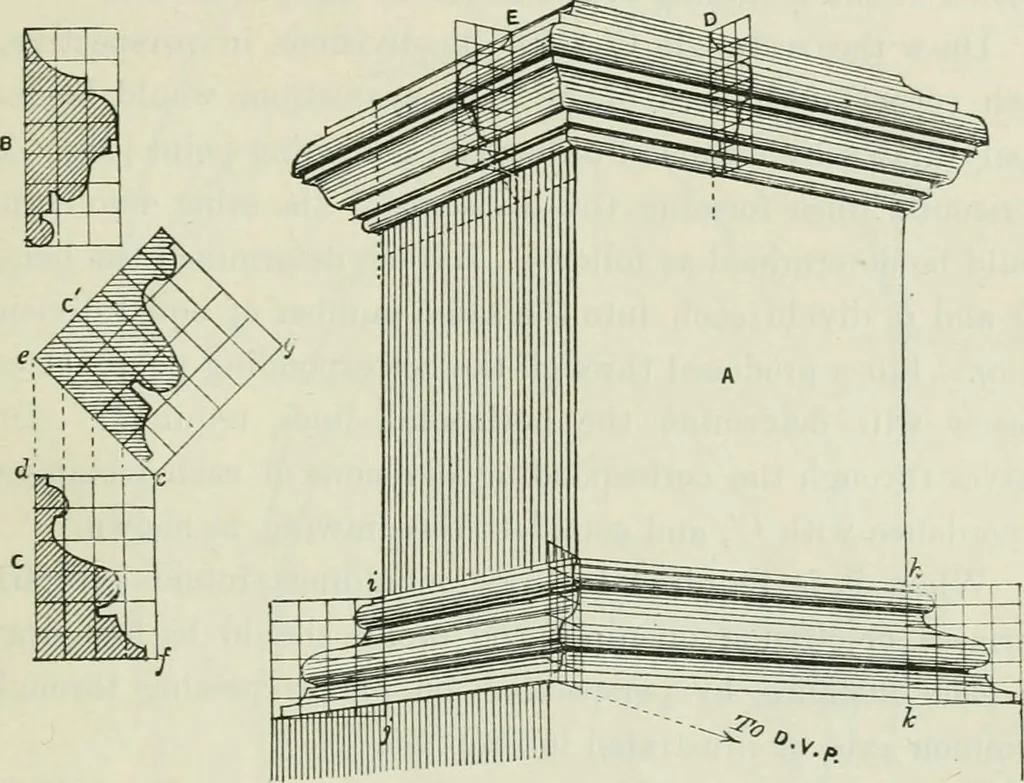

rected. To DRAW Mouldings ix I*eiispective.—Let B (Fig. 180) PERSPECTIVE FOR ARCHITECTS AND ENGINEERS 267 be the section of a moulding \ve wish to draw in perspectiveat the top of the pedestal A. Enclose tlie section of the moulding within a rectangle anddivide it into any number of similar… … Fig. 180 shown ill B. These curves form the profiles of the mouldingsin perspective. Lines drawn to each vanishing point, throughthe various points of these profiles, give us the mouldings inperspective, as shown. When the same moulding is carried round many angles, asshown in Fig. 180, it is…
