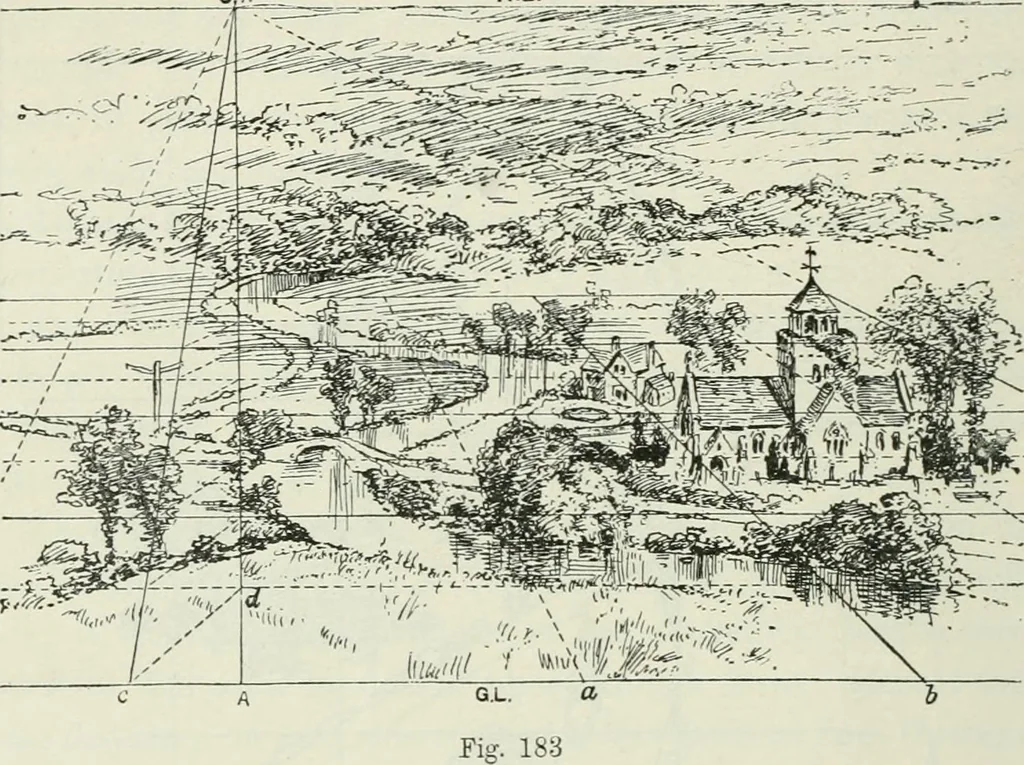

line from c to ^ D.P., to meet the receding line from Ain </. Draw a horizontal line throurfi d for the first row of 272 COMPLETE PERSPECTIVE COURSE receding squares, and proceed in the same manner till the eightrows are determined. The extra number of squares in the width of the back otthe plan… … draw the several lines and curves of the plan through thecorresponding divisions of the perspective squares, and completethe birds-eye view. The ^■anishing points of the several horizontal lines of thebuildings are determined by producing the receding lines inperspective to meet the H.L. [20]. The…
