Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 41

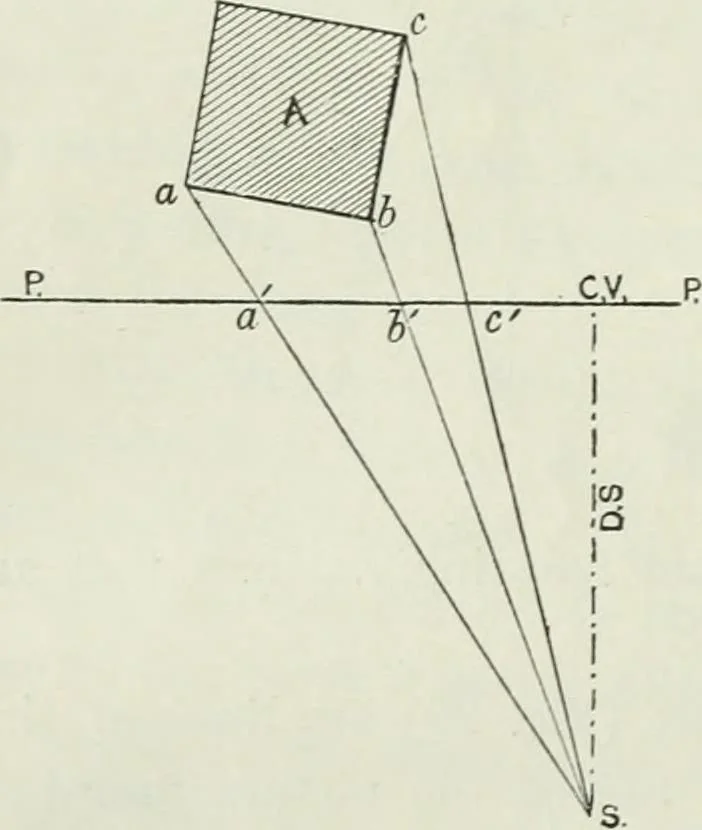

alrays both from the top andbottom corners are represented in plan by the same linespassing through a, V, c\ consequently, «, h, c are representa-tions in plan of vertical lines on the picture plane, i.e. the edgesof the tower in the picture are vertical. 22. SuEFACES Parallel to the Picture… … FiK. 23 II INTRODUCTION 19 and the proportion between the height and Avidtli of each boxis made the same as in the model. 23. Points of Distance. —We will now take a squarepiece of paper, with a side of about six inches, having dia-gonals drawn across it. Place it on the ground plane to theleft of…
Perspective
