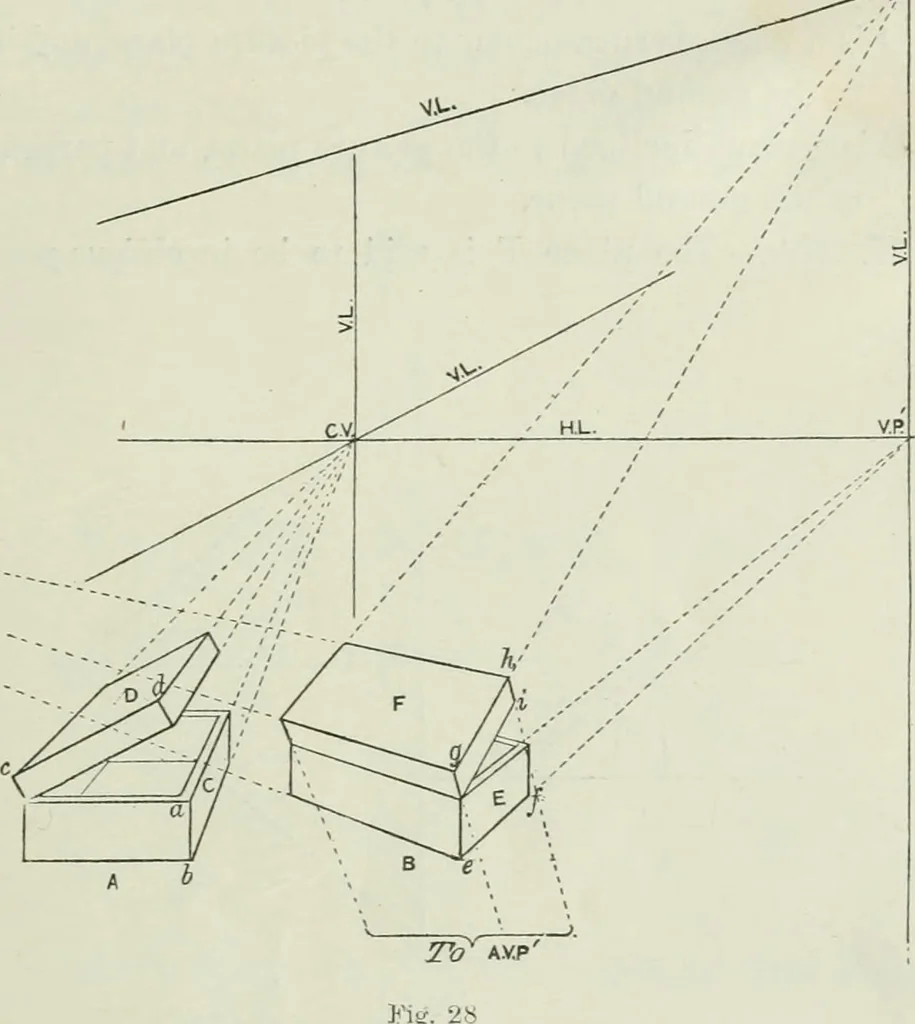

a line is called a i-anisliing line. 34. The vanishing lines for all planes perpendicular to the-picture plane must ptass through the centre of cision. 35. The horizon line is [20] the vanishing line for allhorizontal p)lancs. INTRODUCTION 27 Let A (Fig. 28) represent a parallel perspective view of… … vanishing line for all planes parallel to C. The face D is alsoa plane perpendicular to the picture plane, and a line drawnthrough C.Y., parallel to the edge cd, is the vanishing line forall-planes parallel to I). 36. The vanishing line for any receding jdanc must passthrough the vanishing j^oint…
