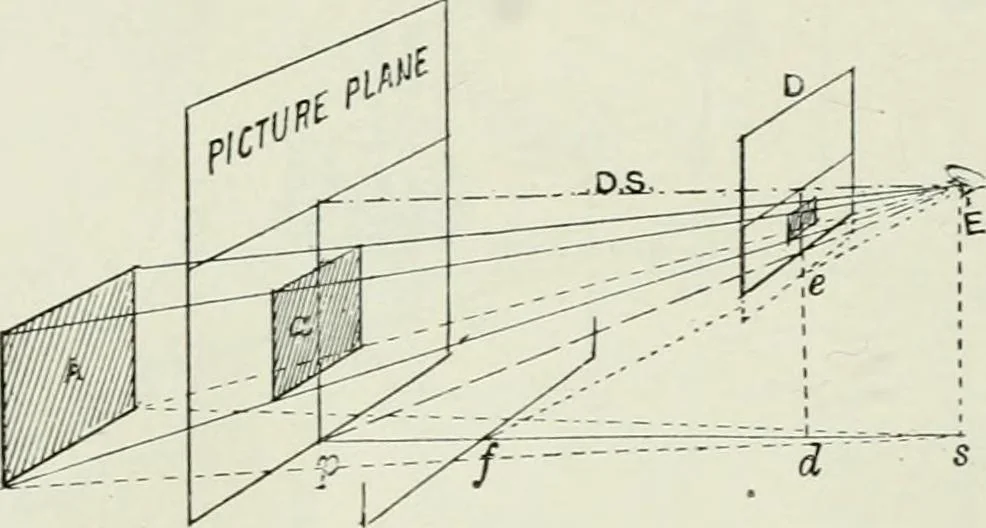

oone-fourth of j?.?. Where the lower edge of the drawing appears to cut theground plane is the position of the picture plane; in theillustration it appears to cut it at ^j. If the lower part of thedrawing were extended to r, the ground line of the pictureplane would be at /. As its distance from… … Fig. 3D object on our drawing, it will only alter the proportion betweenthe tracing of the object on the picture plane and its representa-tion on the drawing, e.(/. sd is one-third of sf, consequently theobject on the drawing will have this proportion to the imaginarytracing on the picture plane,…
