Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 79

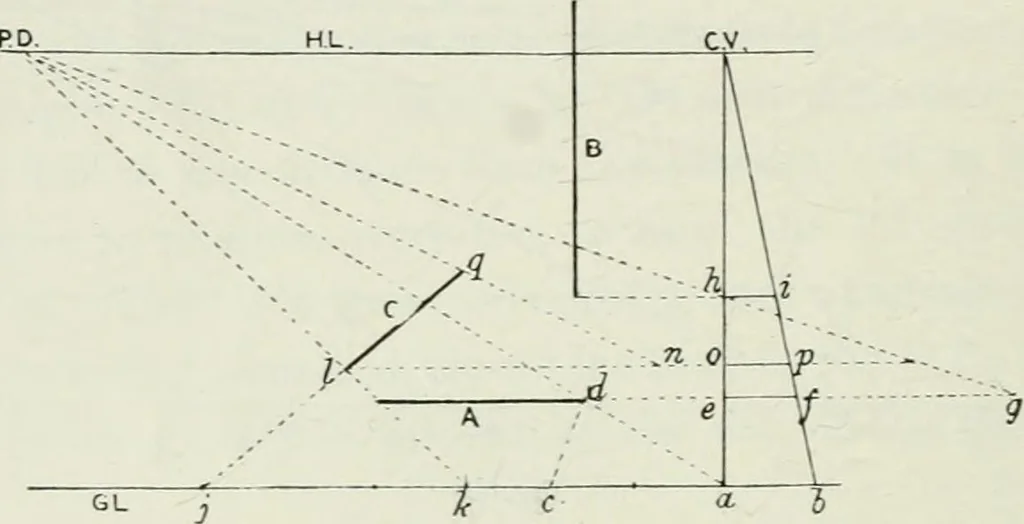

VE COURSE chap. B to he 6 loyig, pcjyendicidar to the G.P., vith its loicer endresting on the G.P., 6 from P.P. and, 3 to spectators left. C to he 5 long, lying on the G.P. perpendicxdar to the P.P., vnthits nearer end 2> from P.P. and 6 to spectators left. Distance of P.P. = 8. Height of eye =… … FiK. 49 distance of P.P. Draw a perspective scale for one foot, as ah(Prob. 5). Set off ac (2) and draw c towards C.Y. to meet a line drawnfrom a to P.D. This gives d, the right-hand end of A. Toobtain the size of a perspective foot at this distance, draw ahorizontal line from d through the…
Perspective
Internet Archive · OCAD University Library · Public Domain Mark 1.0. Free to use for anything.
