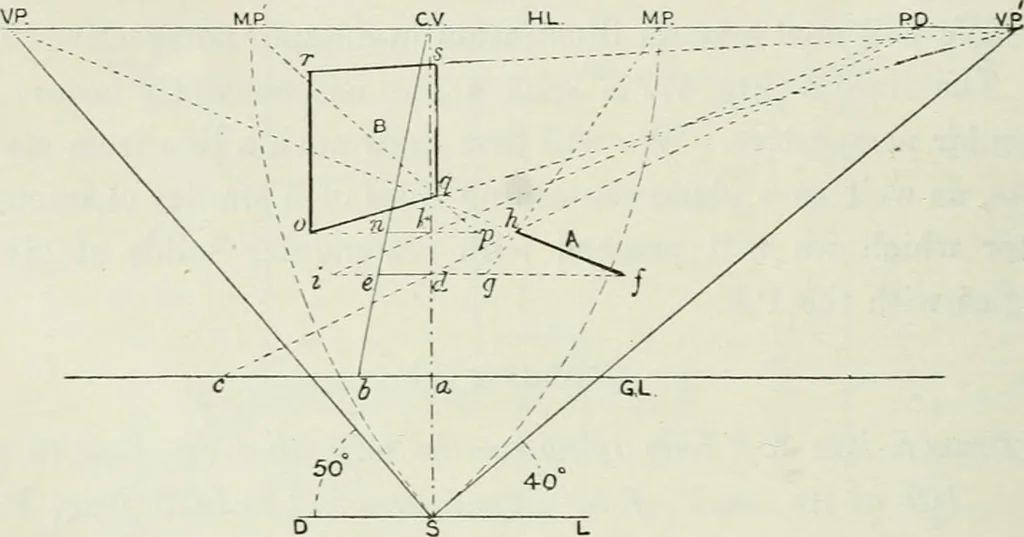

the H.L. in M.P. This is the measuringpoint for the line A [28]. 62 COMPLETE PERSPECTIVE COURSE Set off ac = 3, and draw c to P.D. to meet the line from ato C.V. in d. Draw a horizontal line through d, and set offdf—4: perspective feet {i.e. four times ed). Draw / to \.V.Set off ^ = 3 perspective… … Fig. 03 centre, and its distance from S as radius, draw an arc to meetH.L. in M.P. Set off dA = 2 perspective feet {cd), and draw i to P.D. tomeet the line from a to C.V. in /.-. Draw a horizontal linethrough /., and set off lo — 3 perspective feet (?t/.), and set upfour of the same feet on the…
