Concrete bridges and culverts, for both railroads and highways (1909)

Tyrrell, H. G. (Henry Grattan), b. 1867 · Chicago The M.C. Clarke publishing co. [etc.] · leaf 201

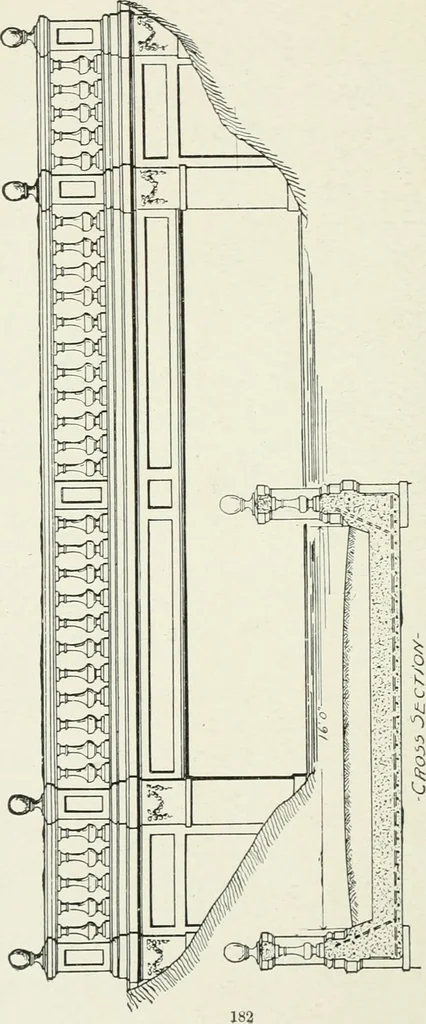

An illustration from Concrete bridges and culverts, for both railroads and highways, 1909, leaf 201 — e the corresponding amount ofsettlement under the abutments of beam bridgesproduces no injurious effect. A frequent objection to the use of beam bridgesis that they are not susceptible to artistic treatment,[t will be seen, however, by referring to Figures 37,38 and 39, that beam bridges may be… … IIIGHUAV BE.iM BRIDGES. 18c he their relative cost. The cost of concrete archhridges has already been given bj the formulaereferred to above, and for the purpose of compar-ison, the costs of concrete beam bridges, in spansranging from 4 to 40 feet in length, are given inthe tables on bigures 38 and…
