Construction : a journal for the architectural engineering and contracting interests of Canada (1913)
Macdonald, Ivan S, McLean, Robert Craik, Reed, Frederick, Keith, Fraser Sanderson, 1878-, Toutloff, M. B · Toronto : Consolidated Press · leaf 199

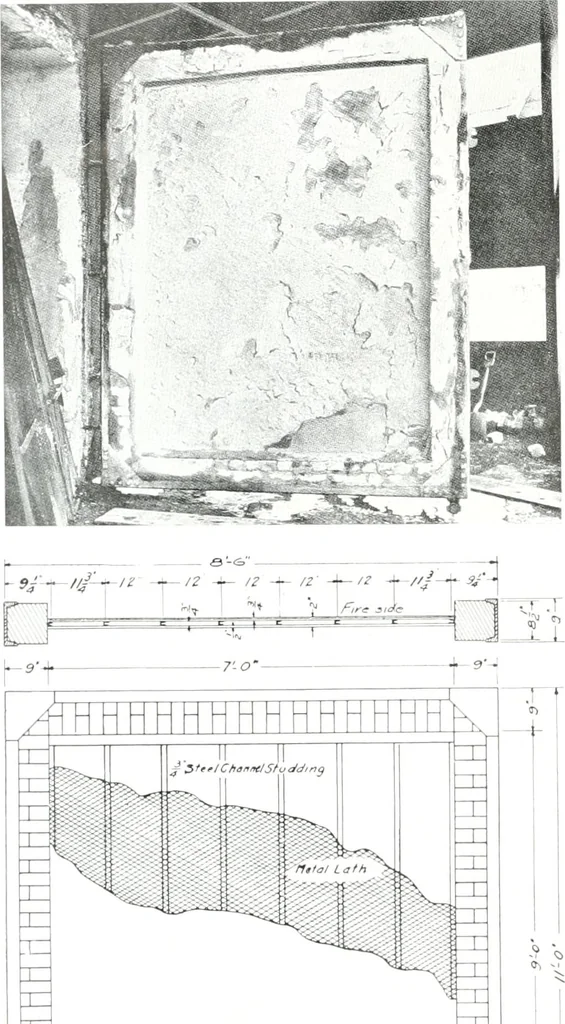

e temperature was finally forced to1,929, the outside temperature not being taken, asthe thermometers only registered 300 F. Owingto unequal expansion the panel deflected at the 19= CONSTRUCTION centre 32 in. tovvaid the fire, but only opened onecrack on the inside in doing so. The application… … TZ r,n,shtd Parfitjc MNMMNNMNNNFfTTFm I left apparently in good enough condition to gothrough the same test a second time. Panel No. 5 contained two and one-half inch 18gauge sheet metal studs, spaced twelve inches apartand lathed on both sides with 24 gauge metal lath wired to the studs. Three…
Building · Architecture
Internet Archive · Thomas Fisher Rare Book Library · Public Domain Mark 1.0. Free to use for anything.
